Brand：CPT

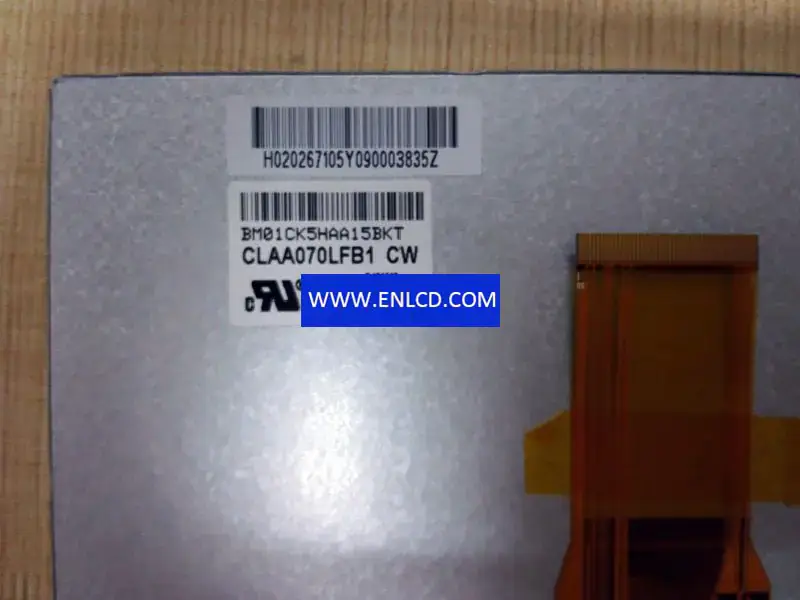

Model：CLAA070LFB1 CW
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：154.08(H)×85.92(V) mm
Outline Dim.：164.9(H)×100(V)×6(D) mm
Bezel Area：157.42(H)×89.46(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：680 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：75/75/50/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：16.2M 50%(CIE1931)
Light Source：WLED[3S11P], 30K hours, W/O Driver
Weight： 152g (Typ.)
Designed For： Automotive Display, Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 50 pinsTTL (1 ch, 8-bit), FPC
Power Supply：3.3/9.6/18.0/-6 (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C
