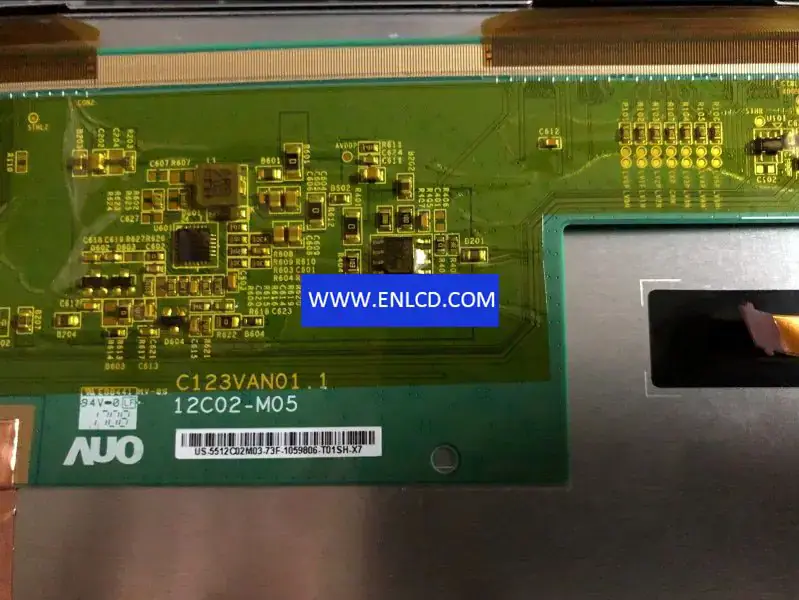

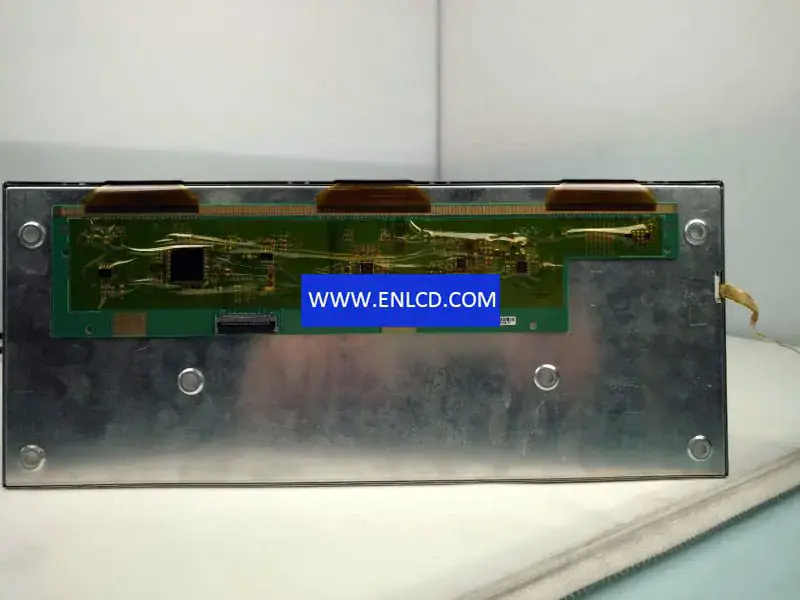

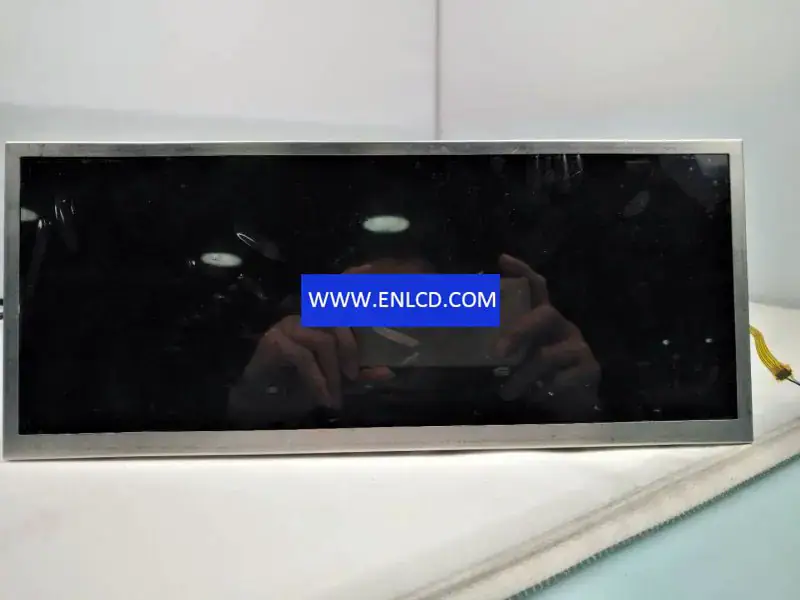

C123VAN01.1 AUO LCD panel replacement for Automotive Display

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:





Panel Brand:AUO
Panel Model:C123VAN01.1
Panel Size:12.3 inch
Panel Type:a-Si TFT-LCD, LCM
Resolution:1440(RGB)×540
Pixel Format:RGB Vertical Stripe
Display Area:291.6(W)×109.35(H) mm
Bezel Opening:295.6(W)×112.35(H) mm
Outline Size:308.5(W)×129(H) mm
Surface:Antiglare, Hard coating (3H)
Brightness:600 cd/m2 (Min.)
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
Display Mode:AHVA, Normally Black, Transmissive
Best View on:Symmetry
Response Time:30 (Max.)(Tr+Td)
Display Colors:16.7M 72%(CIE1931)
Lamp Type:4 stringsWLED, 20K hours, Without Driver
Frequency: 60Hz
Touch Screen:Without
Panel Weight: TBD
Application: Automotive Display,
Signal Interface: LVDS (1 ch, 8-bit), 40 pins , Connector
Input Voltage:3.3V (Typ.)
Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s2)
