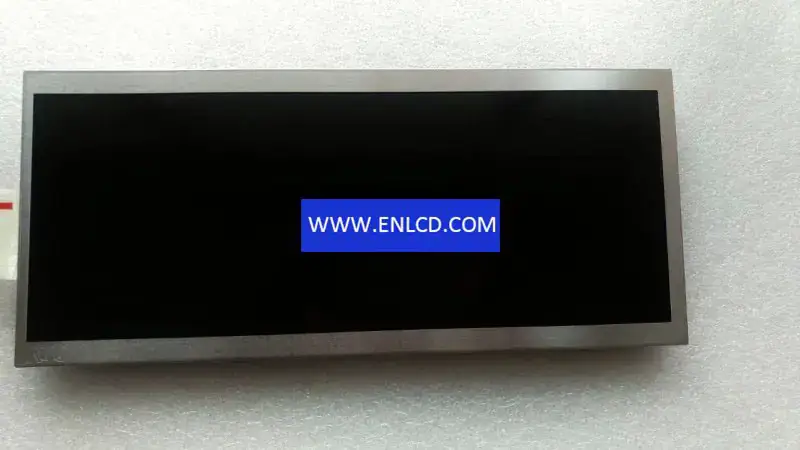

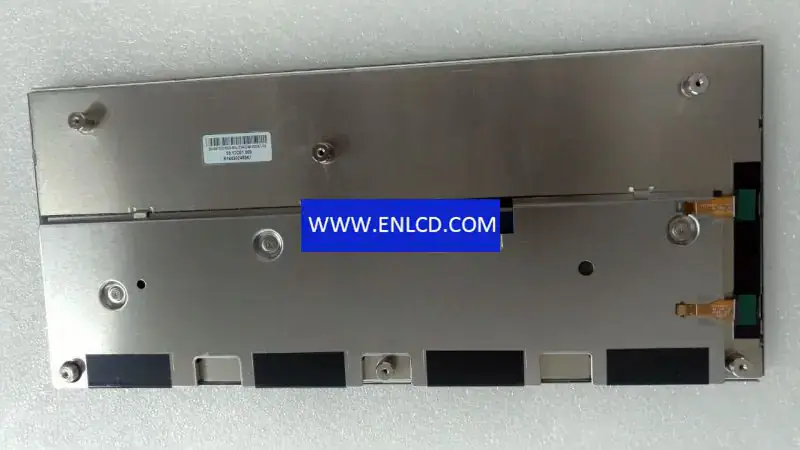

C123HAN01.1 AUO LCD panel replacement for Touch Panel

Brand：AUO
Model：C123HAN01.1
Diagonal Size：12.3 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1920(RGB)×720
Configuration：RGB Vertical Stripe
Active Area：292.32(H)×109.62(V) mm
Outline Dim.：308.1(H)×134.86(V)×15.6(D) mm
Bezel Area：294.82(H)×112.12(V) mm
Treatment：Antiglare
Luminance：700 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：12/13 (Typ.)(Tr/Td)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Operating Mode：AHVA, Normally Black, Transmissive
Support Color：16.7M 70%(CIE1931)
Light Source：WLED[10S2P], 10K hours, W/O Driver
Weight： 590±59g
Designed For： Automotive Display,
Frame Rate：60Hz
Touch Panel：Without

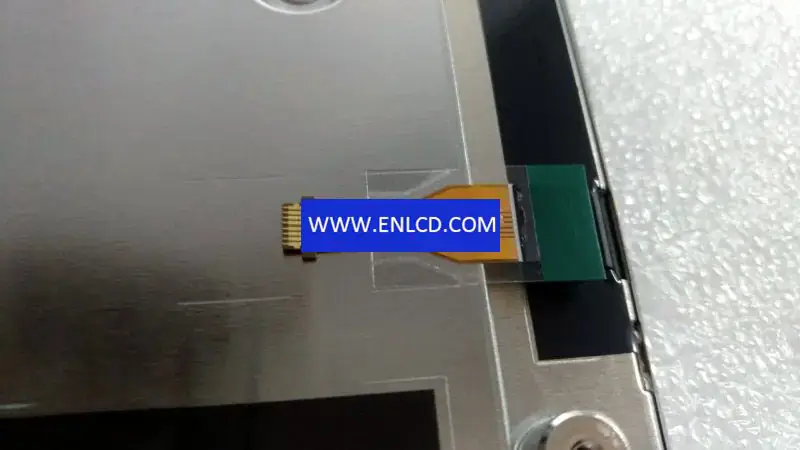

Interface Type： 40 pinsLVDS (2 ch, 8-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s2)
