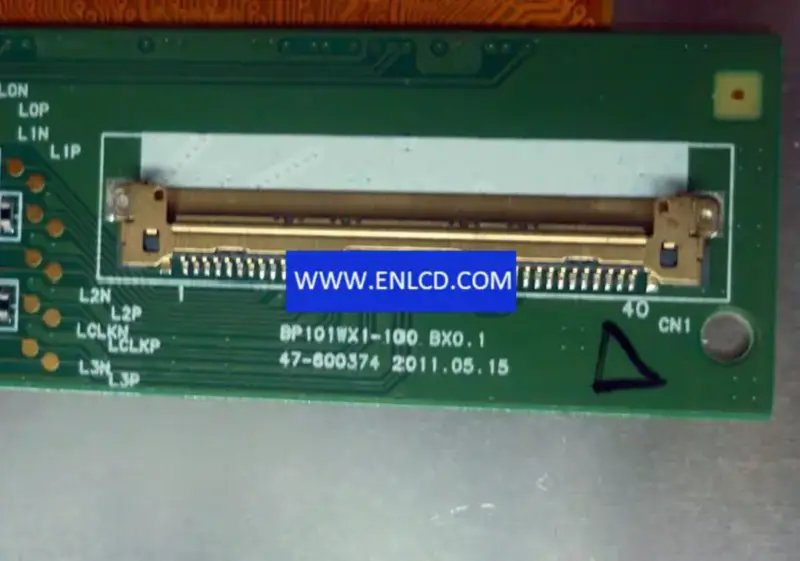

BP101WX1-100 BOE LCD panel replacement

Brand：BOE
Model：BP101WX1-100
Diagonal Size：10.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×800[WXGA]
Configuration：RGB Vertical Stripe
Active Area：216.96(H)×135.6(V) mm
Outline Dim.：227.56(H)×148.2(V) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (3H), Antireflection
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：24 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥20)
Operating Mode：ADS, Normally Black, Transmissive
Support Color：16.7M 50%(CIE1931)
Light Source：WLED[7S6P], 15K hours, W/O Driver
Weight： 158±23.7g
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
