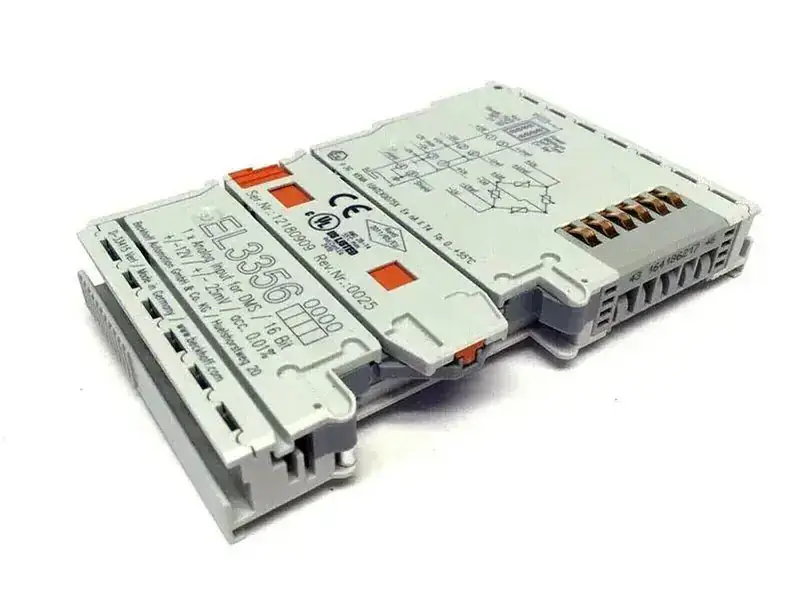

Beckhoff EL3356 PLC Module

Name: Beckhoff EL3356 PLC Module
SKU: ENLCD0003032
Price: 461 USD
Availability: InStock

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

EL3356 Specification

Number of inputs	2, for 1 resistor bridge in full bridge technology
Power supply	via the E-bus
Distributed clocks	–
Measuring range UD	max. ±27 mV
Measuring range UREF	max. ±13.8 V
Internal resistance	> 200 kΩ (UREF), > 1 MΩ (UD)
Supported nominal sensitivity	all, parameter resolution: 0.01 µV/V; recommended: 0.5…4 mV/V
Input filter limit frequency	10 kHz low pass (-3 dB)
Conversion rate	100…4 samples/s (10…250 ms conversion time)
Power supply UV	up to 12 V DC from power contacts, dependent on sensor
Resolution	16 bit, 32 bit presentation
Measurement error/ uncertainty	< ±0.01% for the calculated load value in relation to the final load value with a 12 V feed and 24 mV bridge voltage (hence nominal strain gauge characteristic value of 2 mV/V), self-calibration active, 50 Hz filter active
Current consumption power contacts	depends on strain gauge supply, min. 1 mA
Current consumption E-bus	typ. 210 mA
Special features	self-calibration, quadruple averager, dynamic filters
Operating/storage temperature	0…+55°C/-25…+85°C
Weight	approx. 60 g
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL, ATEX, IECEx
Pluggable wiring	for all ESxxxx terminals
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
