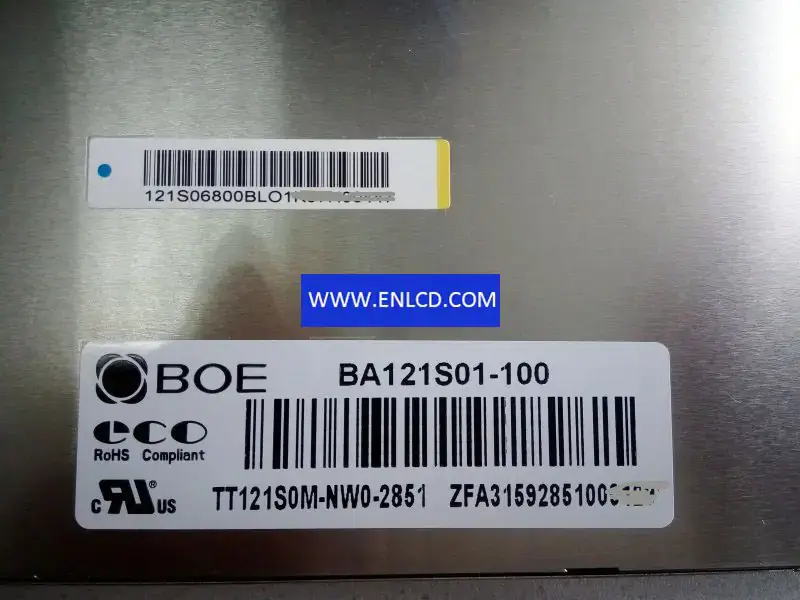

BA121S01-100 BOE LCD panel replacement for Industrial Application

Manufacturer：BOE
Model Name： BA121S01-100
Screen Size：12.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：800(RGB)×600 (SVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 246 × 184.5 (H×V)
Outline(mm)：279 × 209× 9.3 (H×V×D)
Bezel Area(mm)： 249.05 × 188.3 (H×V)
Treatment： –
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800 : 1 (Typ.) (TM)
Viewing Angle： 80/80/65/75 (Typ.)(CR≥10)
Response： 30 (Typ.)(Tr+Td) ms
Good View at： 12 o'clock
Work Mode： TN, Normally White, Transmissive
Color Depth：16.7M 55%(CIE1931)
Backlight：WLED, 50K hours, With LED Driver
Mass： TBD
Used for： Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6/8-bit), Connector , 20 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -30 ~ 80 °COperating Temp.: -20 ~ 70 °C
