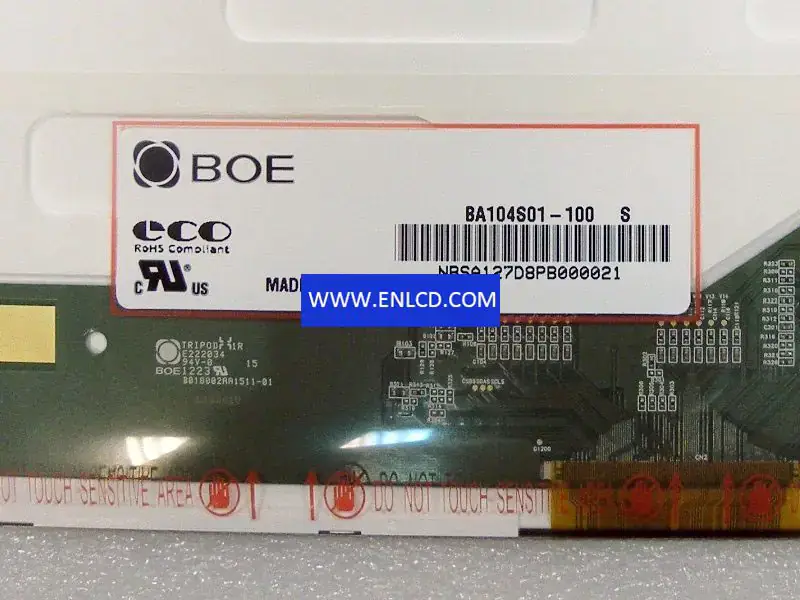

BA104S01-100 BOE LCD panel replacement

Panel Brand：BOE
Panel Model： BA104S01-100
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600 , SVGA
Pixel Format：RGB Vertical Stripe
Display Area：211.2(W)×158.4(H) mm
Bezel Opening：215.0(W)×162.0(H) mm
Outline Size：236(W)×176.9(H)×5.9(D) mm
Surface：Clear
Brightness：500 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：12 o'clock
Response Time：30 (Typ.)(Tr+Td)
Display Colors：262K/16.7M 50%(CIE1931)
Lamp Type：6S6PWLED, 50K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 288g (Typ.)
Application： Industrial Application, Medical Imaging,
Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins , Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
