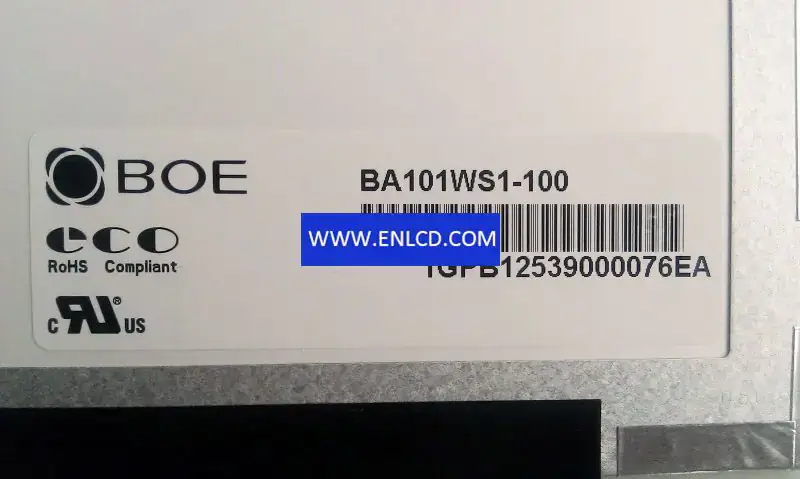

BA101WS1-100 BOE LCD panel replacement for Netbook PC

Brand：BOE
Model：BA101WS1-1005 Compatible
Diagonal Size：10.1 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1024(RGB)×600[WSVGA]
Configuration： RGB Vertical Stripe
Active Area：222.72(H)×125.28(V) mm
Outline Dim.：245(H)×146.5(V)×3.6(D) mm
Bezel Area：225.72(H)×128.28(V) mm
Treatment：Glare (Haze 0%)， Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio： 500:1 (Typ.) (TM)
View Direction：-
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED[6S4P]， 30K hours， With LED Driver
Form Style： Flat (PCBA Flat， Depth 3.4~4.0mm)
Designed For： Netbook PC,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C：：
