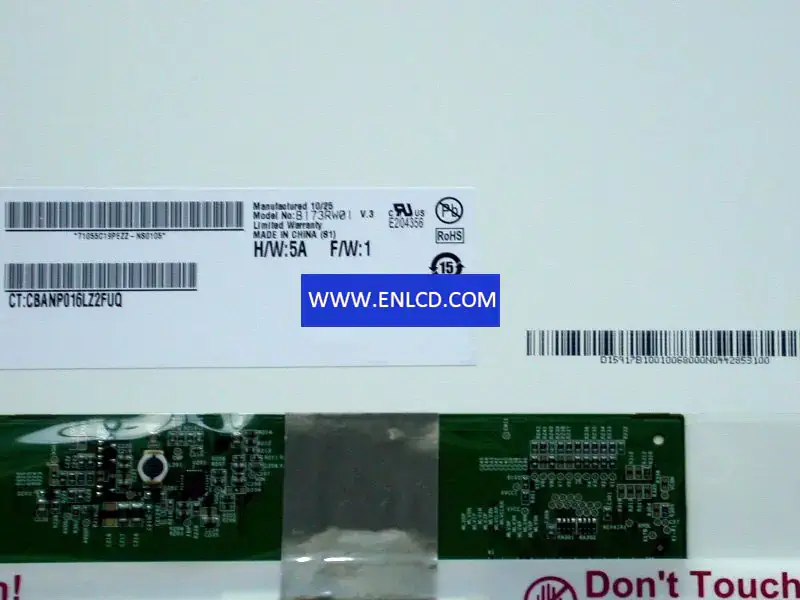

B173RW01 V3 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Size：17.3 inch
Resolution：1600(RGB)×900 , HD+
Display Area：382.08(W)×214.92(H) mm
Outline Size：398.1(W)×232.8(H)×5.8(D) mm
Brightness：220 cd/m2 (Typ.)
Viewing Angle：45/45/15/35 (Min.)(CR≥10)
Best View on：6 o’clock
Display Colors：262K60%(CIE1931)
Frequency： 60Hz
Shape Style：Wedge (PCBA Bent, Depth ≥5.2mm)
Panel Model：B173RW01 V3 (AUO139E)
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：385.48(W)×218.31(H) mm
Surface：Glare (Haze 0%)
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：2/6 (Typ.)(Tr/Td)
Lamp Type：WLED , 10K hours , With LED Driver
Touch Screen：Without
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
