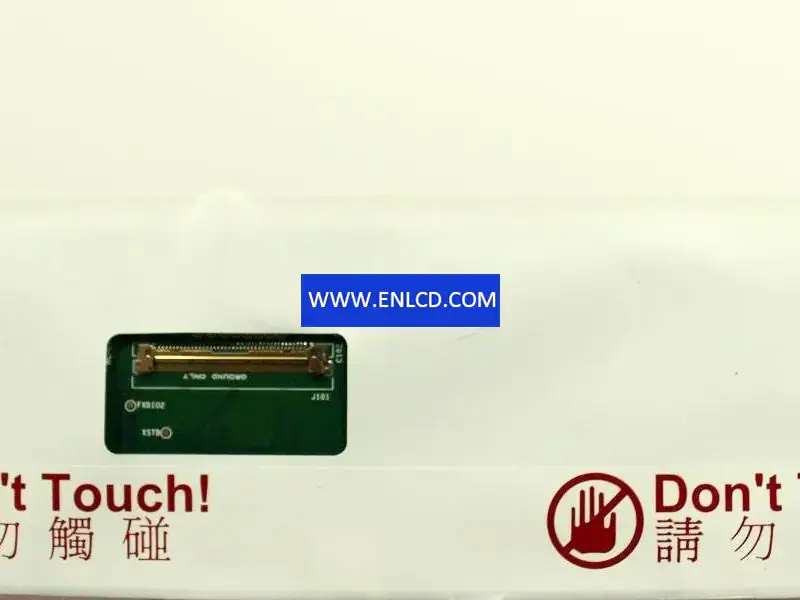

B173RW01 V1 AUO LCD panel replacement for Laptop

Brand：AUO
Model：B173RW01 V1 (AUO119E) 9 Compatible
Diagonal Size：17.3 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1600(RGB)×900[HD+]
Configuration：RGB Vertical Stripe
Active Area：382.08(H)×214.92(V) mm
Outline Dim.：398.1(H)×232.8(V)×5.8(D) mm
Bezel Area：385.08(H)×217.92(V) mm
Treatment：Antiglare， Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：2/6 (Typ.)(Tr/Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 60%(CIE1931)
Light Source：WLED， 10K hours， With LED Driver
Form Style：Wedge (PCBA Bent， Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (2 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
