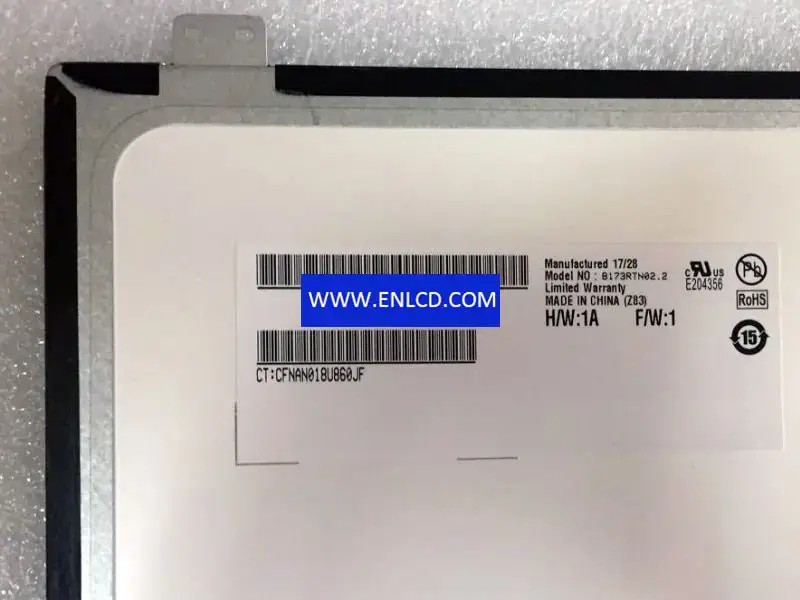

B173RTN02.2 AUO LCD panel replacement for Touchscreen

Manufacturer：AUO
Model Name：B173RTN02.2 (AUO229E)
Screen Size：17.3 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1600(RGB)×900 (HD+)
Arrangement：RGB Vertical Stripe
Active Area(mm)：382.08 × 214.92 (H×V)
Outline(mm)： 398.1 × 250.5× 4 (H×V×D)
Bezel Area(mm)：-
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Response：8 (Typ.)(Tr+Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K 60%(CIE1931)
Backlight：WLED, 10K hours, With LED Driver
Outline Shape： Flat (PCBA Flat, Depth 3.4~4.0mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： eDP (1 Lane), Connector , 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
