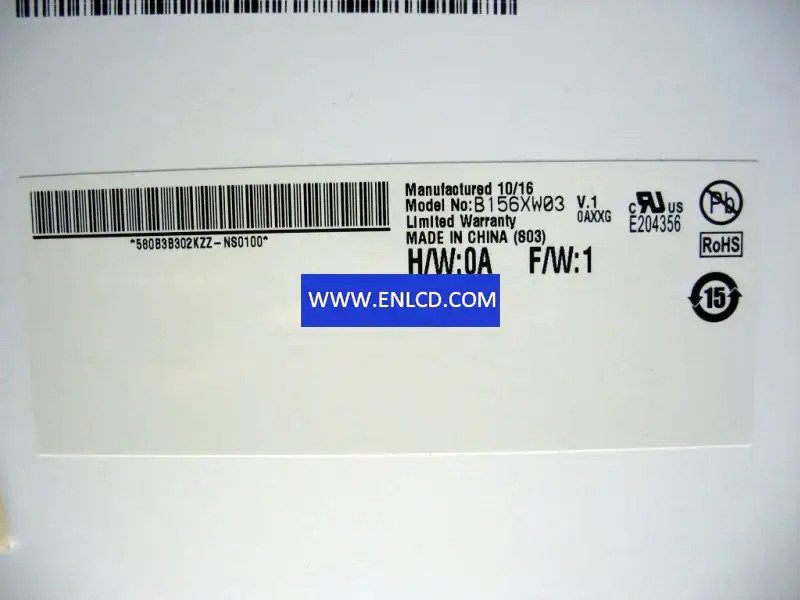

B156XW03 V1 AUO LCD panel replacement

Manufacturer：AUO
Model Name：B156XW03 V1 (AUO31EC) 1 Compatible
Screen Size：15.6 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1366(RGB)×768 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 344.232 × 193.536 (H×V)
Outline(mm)：359.5 × 223.4× 3.8 (H×V×D)
Bezel Area(mm)： –
Treatment： Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 45/45/15/35 (Typ.)(CR≥10)
Response： 8 (Typ.)(Tr+Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 60%(CIE1931)
Backlight：WLED, 10K hours, With LED Driver
Outline Shape： Flat (PCBA Flat, Depth 3.4~4.0mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6-bit), Connector , 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
