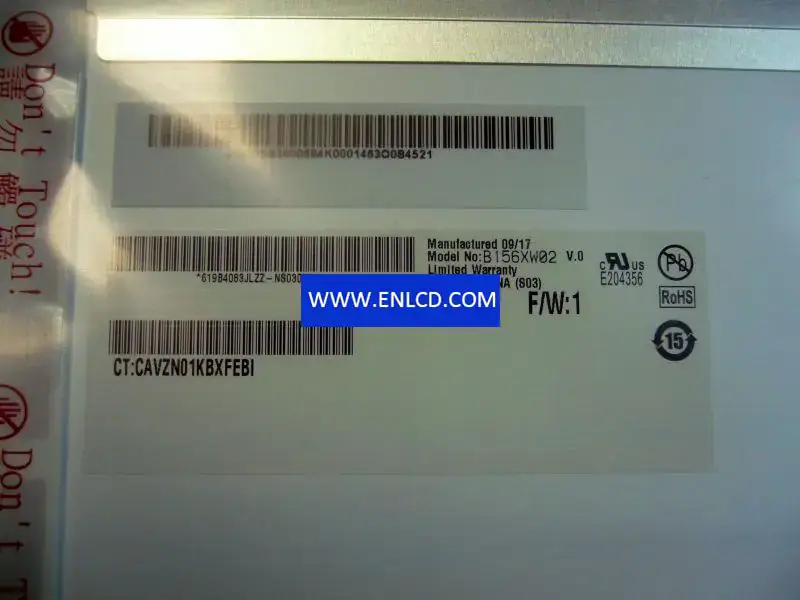

B156XW02 V0 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B156XW02 V0 (AUO20EC) 61 Compatible
Panel Size：15.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：344.232(W)×193.536(H) mm
Bezel Opening：347.232(W)×196.536(H) mm
Outline Size：359.3(W)×209.5(H)×5.5(D) mm
Surface：Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.)
Brightness：220 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：6/2 (Typ.)(Tr/Td)
Display Colors：262K 60%(CIE1931)
Lamp Type：9S6PWLED, 10K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
