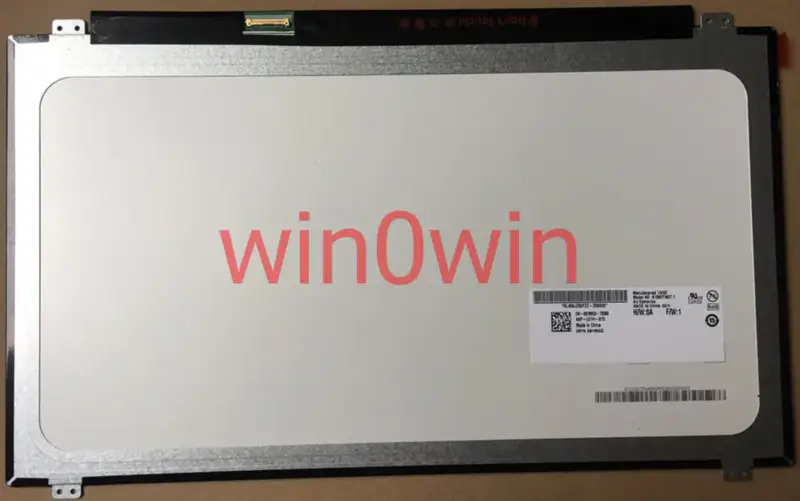

B156XTN03.3 AUO LCD panel replacement for Touch Panel-

Brand：AUO
Model：B156XTN03.3
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration： RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：-
Bezel Area：-
Treatment：Antiglare
Luminance：200 cd/m2 (Typ.)
Contrast Ratio： 400:1 (Typ.) (TM)
View Direction：-
Response Time：-
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED, With LED Driver
Form Style： Slim (PCBA Flat, Depth ≤3.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：-
Interface Type： 30 pinseDP (1 Lane), Connector
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
