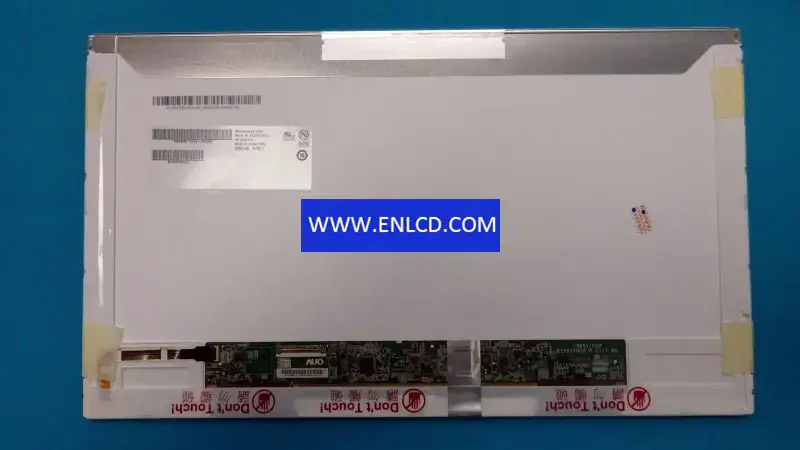

B156XTN02.2 AUO LCD panel replacement

Brand：AUO
Model：B156XTN02.2 (AUO22EC) 8 Compatible
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：359.3(H)×209.5(V)×5.5(D) mm
Bezel Area：350.4(H)×196.94(V) mm
Treatment：Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED, 15K hours, With LED Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
