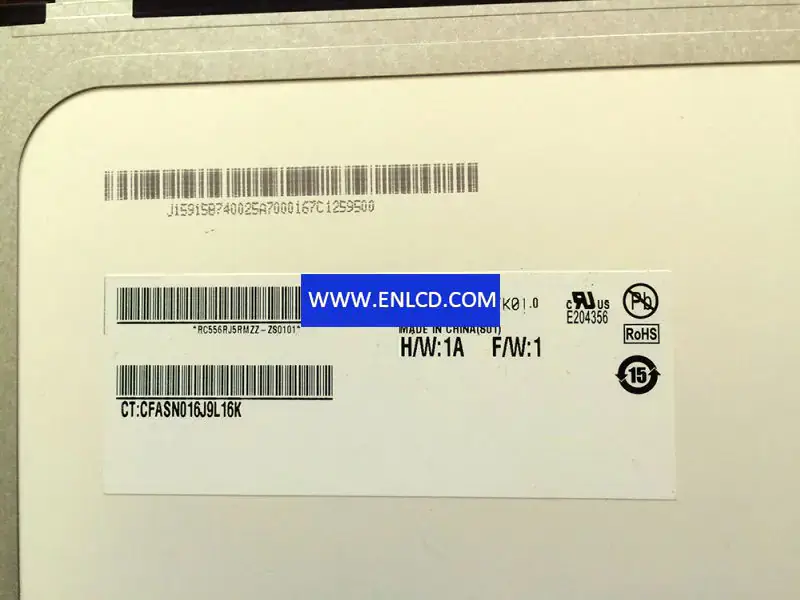

B156XTK01.0 AUO LCD panel replacement

Brand：AUO
Model：B156XTK01.0 (AUO10EC)
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：359.5(H)×223.8(V)×3.4(D) mm
Bezel Area：-
Treatment：Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED, 15K hours, With LED Driver
Form Style：Slim (PCBA Flat, Depth ≤3.2mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Embeded (Projected Capacitive Touch, On-Cell)
Interface Type： 40 pinseDP (1 Lane), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
