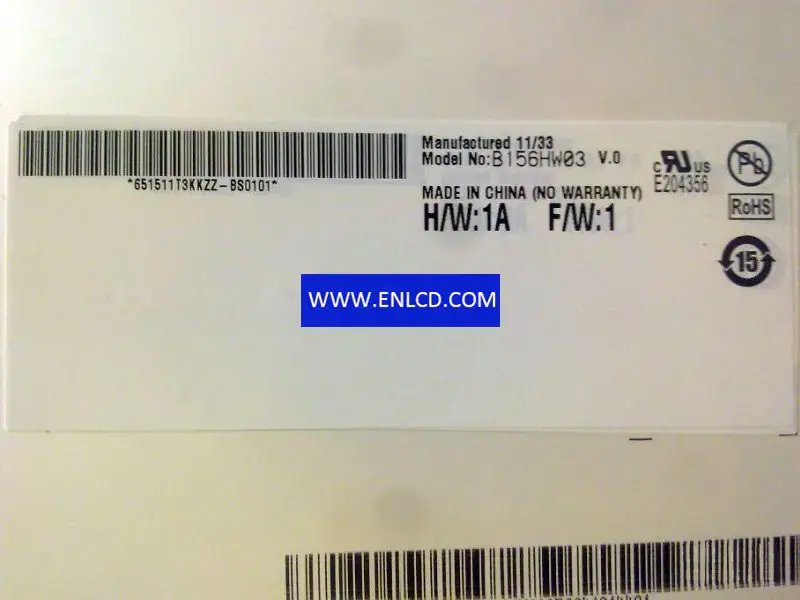

B156HW03 V0 AUO LCD panel replacement for Laptop

Brand：AUO
Model：B156HW03 V0 (AUO30ED) 1 Compatible
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1920(RGB)×1080[FHD]
Configuration：RGB Vertical Stripe
Active Area：344.16(H)×193.59(V) mm
Outline Dim.：359.5(H)×223.8(V)×4.1(D) mm
Bezel Area：346.16(H)×195.59(V) mm
Treatment：Glare (Haze 0%)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 60%(CIE1931)
Light Source：WLED， 10K hours， With LED Driver
Form Style：Flat (PCBA Flat， Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (2 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
