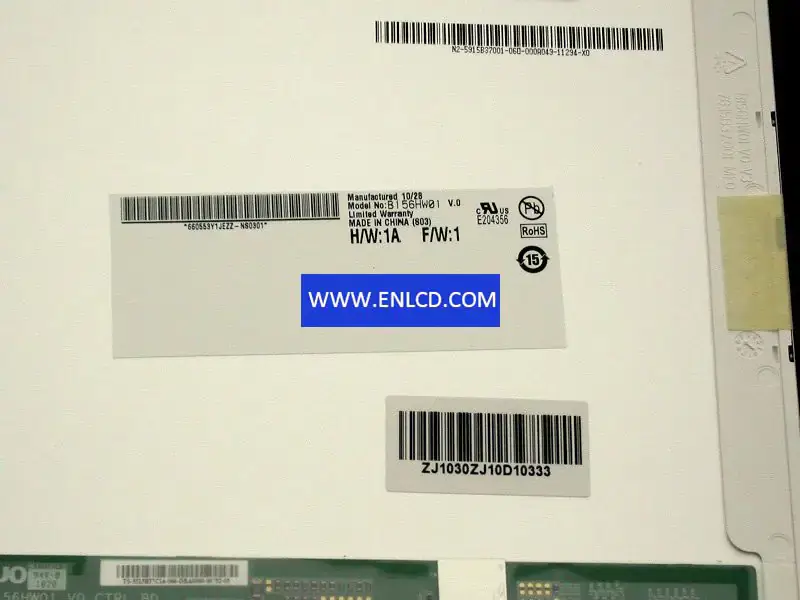

B156HW01 V0 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B156HW01 V0 (AUO10ED) 20 Compatible
Panel Size：15.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：344.16(W)×193.59(H) mm
Bezel Opening：347.16(W)×196.59(H) mm
Outline Size：359.3(W)×209.5(H)×5.7(D) mm
Surface：Glare (Haze 0%)
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：2/6 (Typ.)(Tr/Td)
Display Colors：262K 60%(CIE1931)
Lamp Type：WLED, 10K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 40 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
