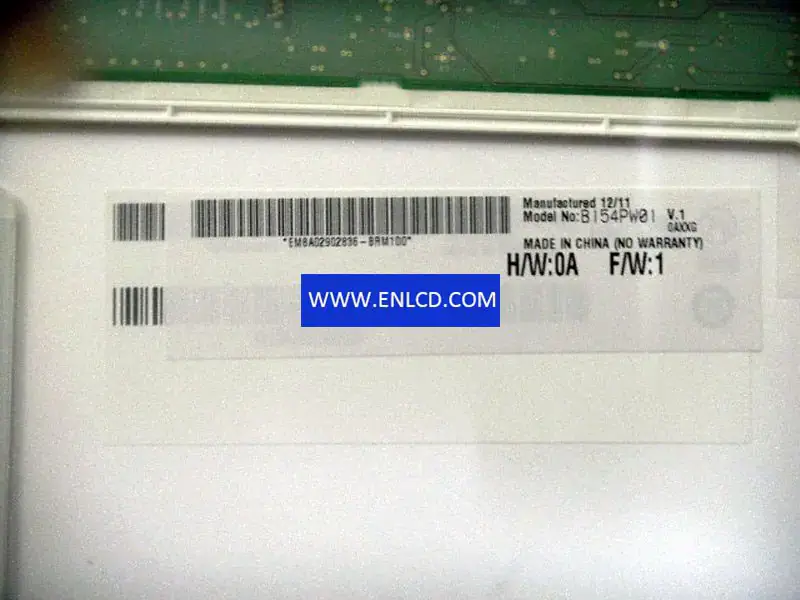

B154PW01 V1 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B154PW01 V1 (APP9C60) 8 Compatible
Panel Size：15.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1440(RGB)×900 , WXGA+
Pixel Format：RGB Vertical Stripe
Display Area：331.56(W)×207.225(H) mm
Bezel Opening：335.4(W)×211.1(H) mm
Outline Size：344(W)×222(H)×6.2(D) mm
Surface：Antiglare, Hard coating (3H), Reflection 4.3% (Typ.)
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：-
Response Time：4/12 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：1 pcsCCFL, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
