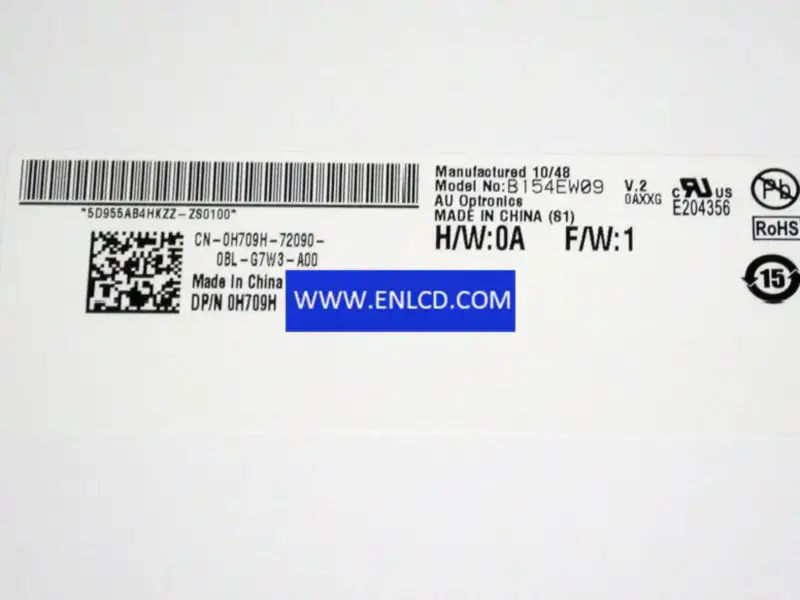

B154EW09 V2 AUO LCD panel replacement

Brand：AUO
Diagonal Size：15.4 inch
Pixel Format：1280(RGB)×800[WXGA]
Active Area：331.2(H)×207(V) mm
Bezel Area：335.3(H)×211.1(V) mm
Luminance：220 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Support Color：262K 45% (CIE1931)
Form Style：-
Frame Rate： 60Hz
Model：B154EW09 V2 (AUO9274)
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 344(H)×222(V)×5.7(D)mm
Treatment：Glare (Haze 0%), Hard coating (3H)
Contrast Ratio： 500:1 (Typ.) (TM)
Response Time：8 (Typ.)(Tr+Td)
Operating Mode： TN, Normally White, Transmissive
Light Source： WLED [9S6P] , 10K hours , W/O Driver
Designed For： Laptop,
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
