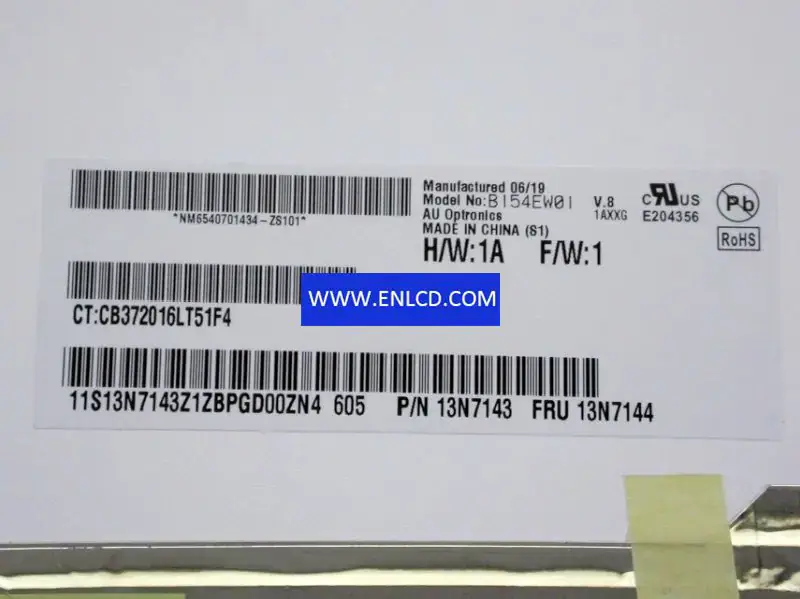

B154EW01 V8 AUO LCD panel replacement for Touchscreen

Manufacturer：AUO
Model Name：B154EW01 V8 (AUO1874) 4 Compatible
Screen Size：15.4 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1280(RGB)×800 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：331.2 × 207 (H×V)
Outline(mm)：-
Bezel Area(mm)：335.0 × 210.7 (H×V)
Treatment：Antiglare (Haze 25%), Hard coating (3H), Reflection 4.3% (Typ.)
Luminance：180 cd/m2 (Typ.)
Contrast Ratio：400 : 1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Response：4/12 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K
Backlight：1 pcsCCFL, 10K hours, No Driver
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6-bit), Connector , 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
