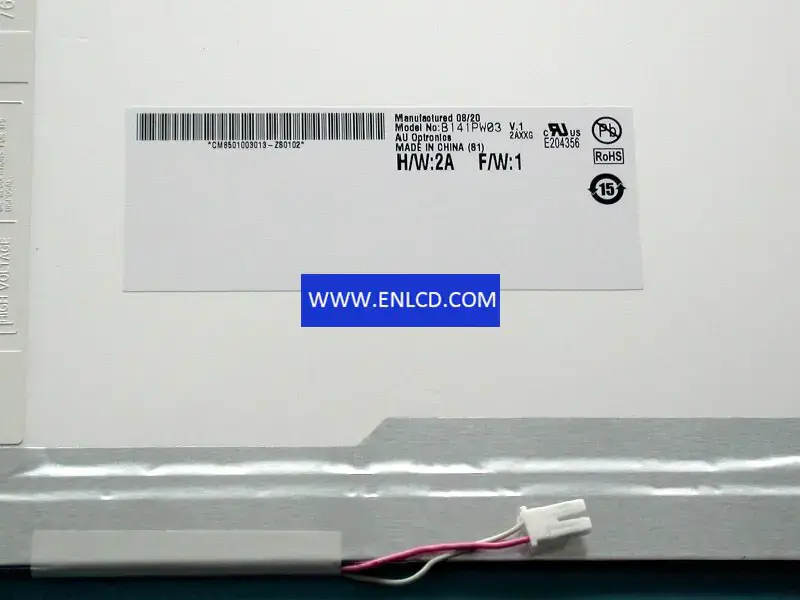

B141PW03 V1 AUO LCD panel replacement for Touch Panel

Brand：AUO
Model：B141PW03 V1 (AUO3147) 3 Compatible
Diagonal Size：14.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1440(RGB)×900[WXGA+]
Configuration：RGB Vertical Stripe
Active Area：303.48(H)×189.675(V) mm
Outline Dim.：319.5(H)×205.5(V)×5.5(D) mm
Bezel Area：307.09(H)×193.3(V) mm
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：45/45/20/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：CCFL[1 pcs], 12K hours, W/O Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (2 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
