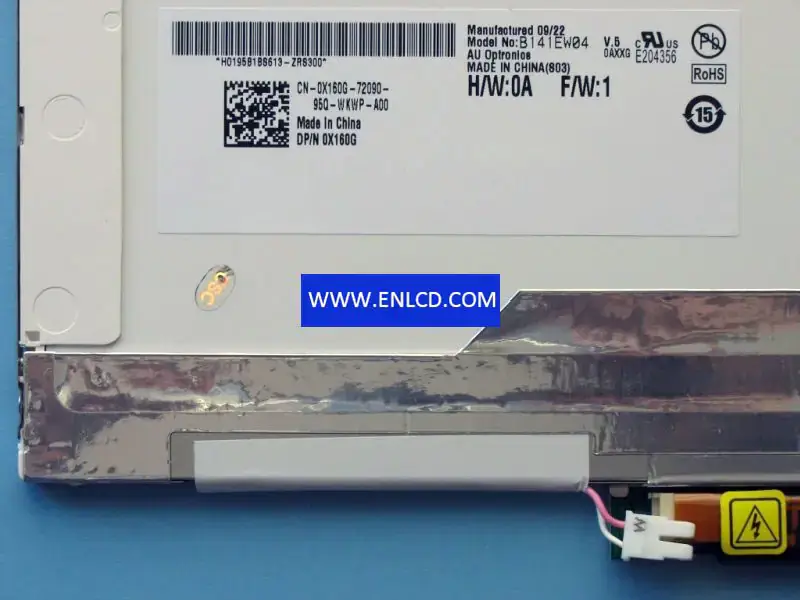

B141EW04 V5 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B141EW04 V5 (AUO4544) 2 Compatible
Panel Size：14.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：303.36(W)×189.6(H) mm
Bezel Opening：307.0(W)×193.1(H) mm
Outline Size：319.5(W)×218(H)×5.5(D) mm
Surface：Antiglare (Haze 40%), Hard coating (3H)
Brightness：220 cd/m2 (Typ.)
Contrast Ratio：350:1 (Typ.) (TM)
Viewing Angle：45/45/20/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：5/11 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：1 pcsCCFL, 12K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
