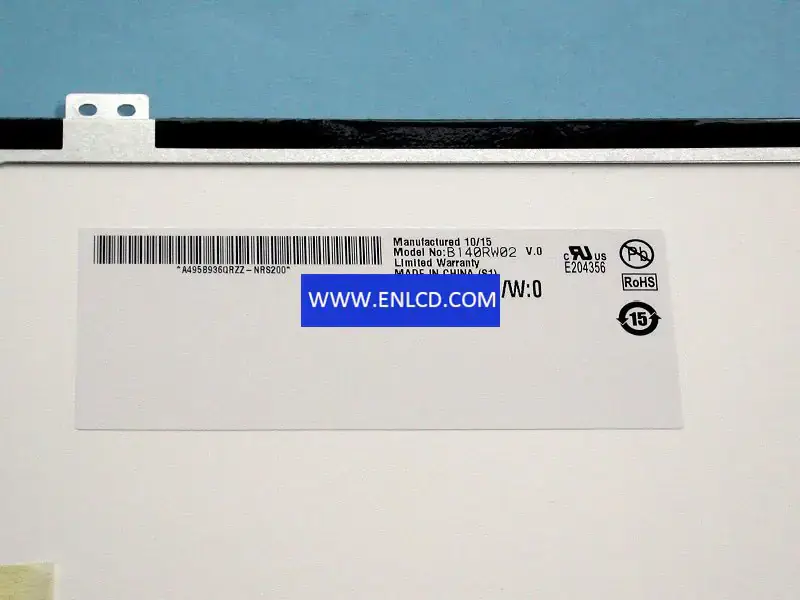

B140RW02 V0 AUO LCD panel replacement for Touch Panel

Brand：AUO
Model：B140RW02 V0 (AUO203E)
Diagonal Size：14.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1600(RGB)×900[HD+]
Configuration： RGB Vertical Stripe
Active Area：309.6(H)×174.15(V) mm
Outline Dim.：320.4(H)×205.1(V)×3.6(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio： 400:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：2/6 (Typ.)(Tr/Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED, 10K hours, With LED Driver
Form Style： Flat (PCBA Flat, Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (2 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
