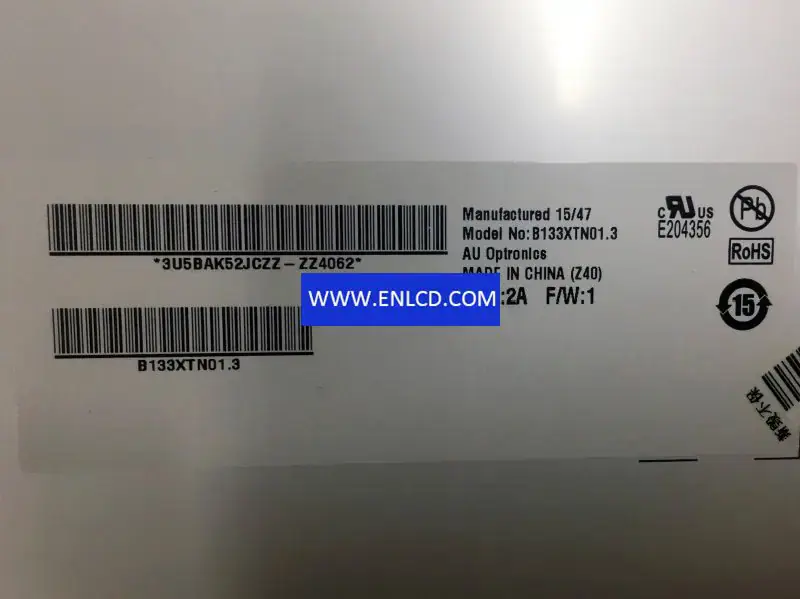

B133XTN01.3 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B133XTN01.3 (AUO132C)
Panel Size：13.3 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：293.42(W)×164.97(H) mm
Bezel Opening：-
Outline Size：306.3(W)×195.2(H)×3(D) mm
Surface：Antiglare, Hard coating (3H), Reflection 4.3% (Typ.)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：3/5 (Typ.)(Tr/Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：WLED, 15K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Slim (PCBA Flat, Depth ≤3.2mm)
Application： Laptop,
Signal Interface： eDP (1 Lane), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
