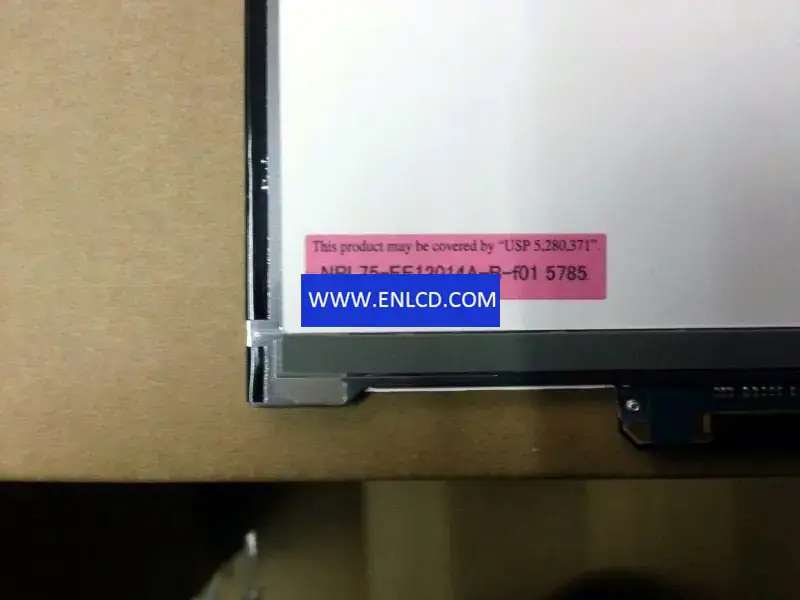

B131RW02 V0 AUO LCD panel replacement for Touchscreen

Manufacturer：AUO
Model Name：B131RW02 V0 (SNY06FA)
Screen Size：13.1 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1600(RGB)×900 (HD+)
Arrangement：RGB Vertical Stripe
Active Area(mm)：289.2 × 162.675 (H×V)
Outline(mm)： 299.1 × 184.3× 3 (H×V×D)
Bezel Area(mm)：-
Treatment：Antiglare, Hard coating (4H)
Luminance：410 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle：55/55/50/55 (Typ.)(CR≥10)
Response：3/13 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K 81%(CIE1931)
Backlight：WLED, 10K hours, No Driver
Outline Shape： Slim (PCBA Flat, Depth ≤3.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： eDP (2 Lanes), Connector , 30 pins
Voltage Supply：2.5V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
