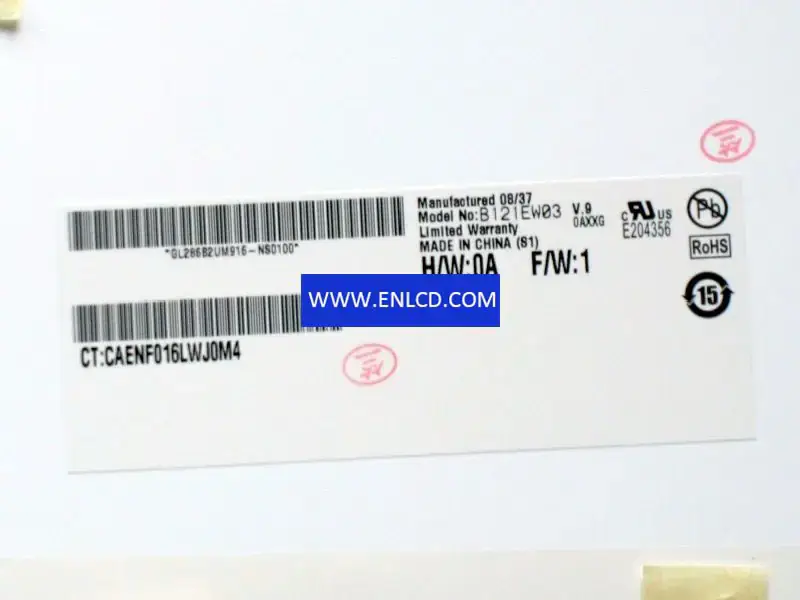

B121EW03 V9 AUO LCD panel replacement for Laptop

Panel Brand：AUO
Panel Model：B121EW03 V92 Compatible
Panel Size：12.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：261.12(W)×163.2(H) mm
Bezel Opening：263.93(W)×166.5(H) mm
Outline Size：275.8(W)×178(H)×6.5(D) mm
Surface：Antiglare, Hard coating (3H), Reflection 4.3% (Typ.)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：40/40/20/40 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：1 pcsCCFL, 12K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 20 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
