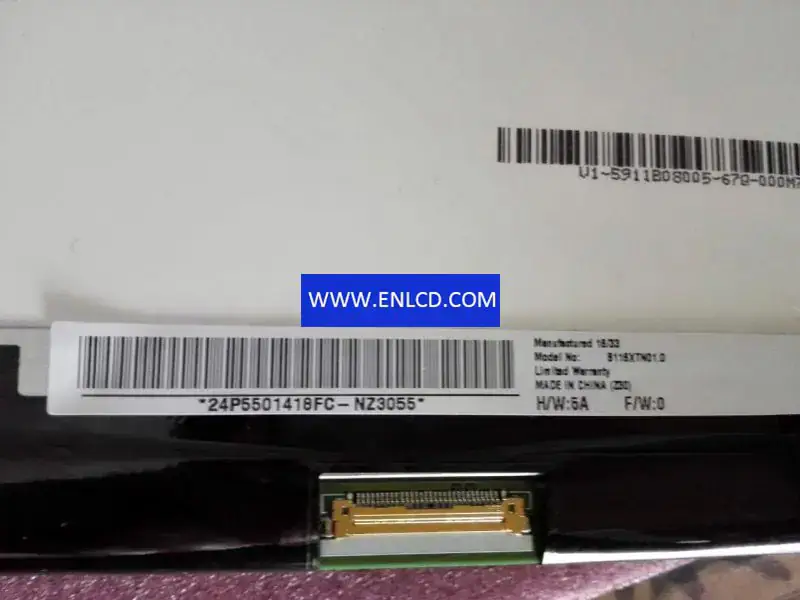

B116XTN01.0 HW5A AUO LCD panel replacement

Brand：AUO
Diagonal Size：11.6 inch
Pixel Format：1366(RGB)×768[WXGA]
Active Area：256.125(H)×144(V) mm
Bezel Area：-
Luminance：220 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Support Color：262K 45% (CIE1931)
Form Style：Flat (PCBA Flat, Depth 3.4~4.0mm)
Frame Rate： 60Hz
Model：B116XTN01.0 HW5A (AUO105C)
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 278(H)×168(V)×3.6(D)mm
Treatment：Antiglare, Hard coating (3H)
Contrast Ratio： 500:1 (Typ.) (TM)
Response Time：3/5 (Typ.)(Tr/Td)
Operating Mode： TN, Normally White, Transmissive
Light Source： WLED, 15K hours , With LED Driver
Designed For： Laptop, Netbook PC,
Touch Panel：Without
Interface Type： 30 pinseDP (1 Lane), Connector
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
