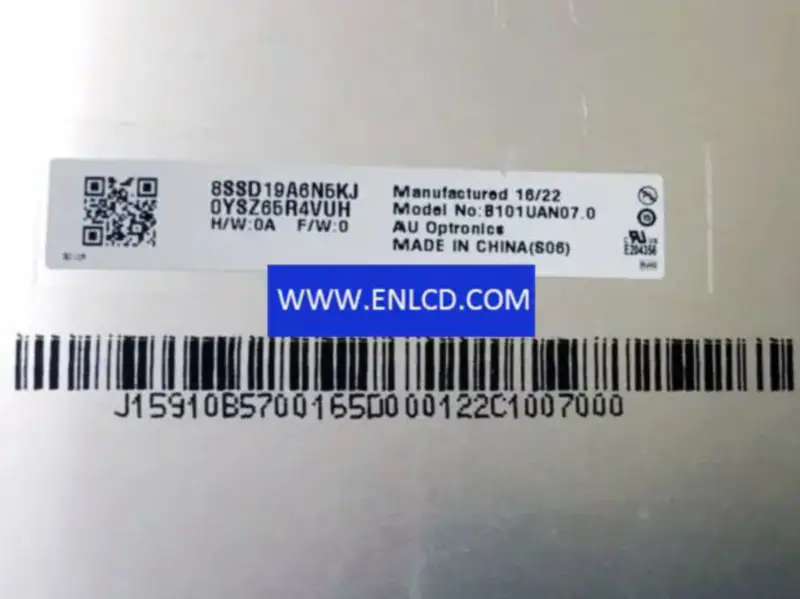

B101UAN07.0 AUO LCD panel replacement for Pad & Tablet

Panel Brand：AUO
Panel Model：B101UAN07.0
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1200(RGB)×1920 , WUXGA
Pixel Format：RGB Vertical Stripe
Display Area：135.36(W)×216.576(H) mm
Bezel Opening：-
Outline Size：143(W)×227.93(H)×4.3(D) mm
Surface：Glare (Haze 0%)
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：AHVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：25 (Typ.)(Tr+Tf)
Display Colors：16.7M 72%(CIE1931)
Lamp Type：8S4PWLED, 15K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 120g (Typ.)
Application： Pad & Tablet,
Signal Interface： MIPI (4 data lanes), 45 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
