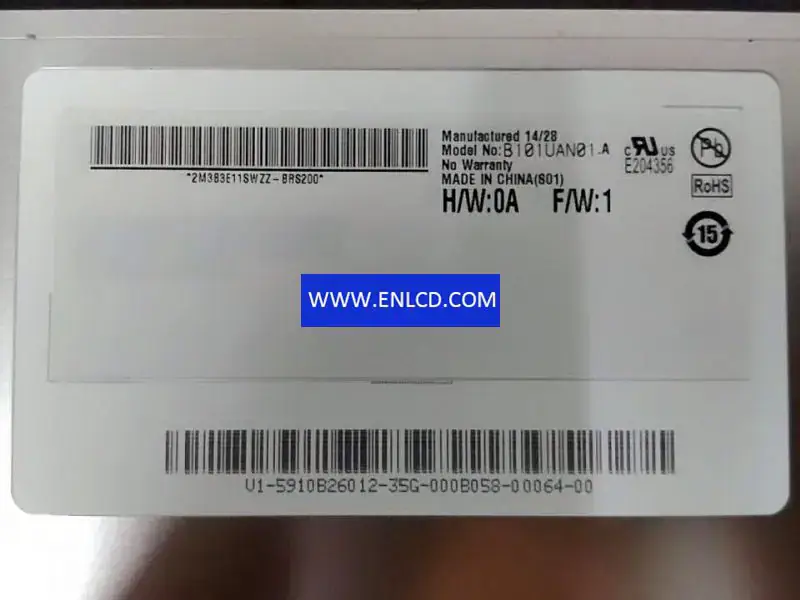

B101UAN01.A AUO LCD panel replacement

Manufacturer：AUO
Model Name：B101UAN01.A
Screen Size：10.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1920(RGB)×1200 (WUXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 216.81 × 135.5 (H×V)
Outline(mm)：228.6 × 148.15× 4.7 (H×V×D)
Bezel Area(mm)： –
Treatment： Glare (Haze 0%)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800 : 1 (Typ.) (TM)
Viewing Angle： 89/89/89/89 (Typ.)(CR≥10)
Response： 15/10 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： AHVA, Normally Black, Transmissive
Color Depth：16.7M 52%(CIE1931)
Backlight：WLED, 15K hours, With LED Driver
Mass： 171g (Max.)
Used for： Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：eDP (2 Lanes), Connector, 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
