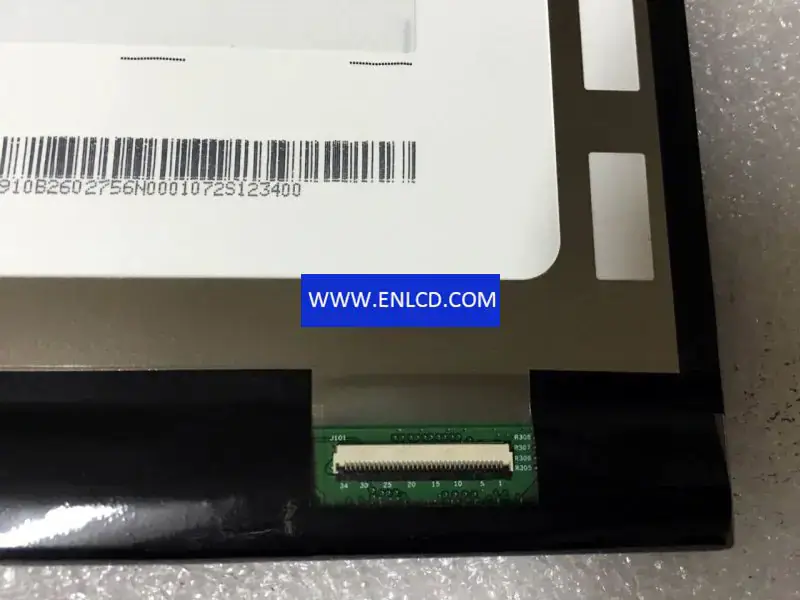

B101UAN01.7 HW0A AUO LCD panel replacement

Manufacturer：AUO
Model Name：B101UAN01.7 HW0A (AUO17D8)
Screen Size：10.1 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1920(RGB)×1200 (WUXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：216.81 × 135.5 (H×V)
Outline(mm)： 227.72 × 147.8× 5.35 (H×V×D)
Bezel Area(mm)：-
Treatment：Glare (Haze 0%)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800 : 1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Response：25 (Typ.)(Tr+Td) ms
Good View at：Symmetry
Work Mode：AHVA, Normally Black, Transmissive
Color Depth：16.7M 50%(CIE1931)
Backlight：WLED, 12K hours, With LED Driver
Mass： 140g (Max.)
Used for： Industrial Application, Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： MIPI (4 data lanes), Connector , 34 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
