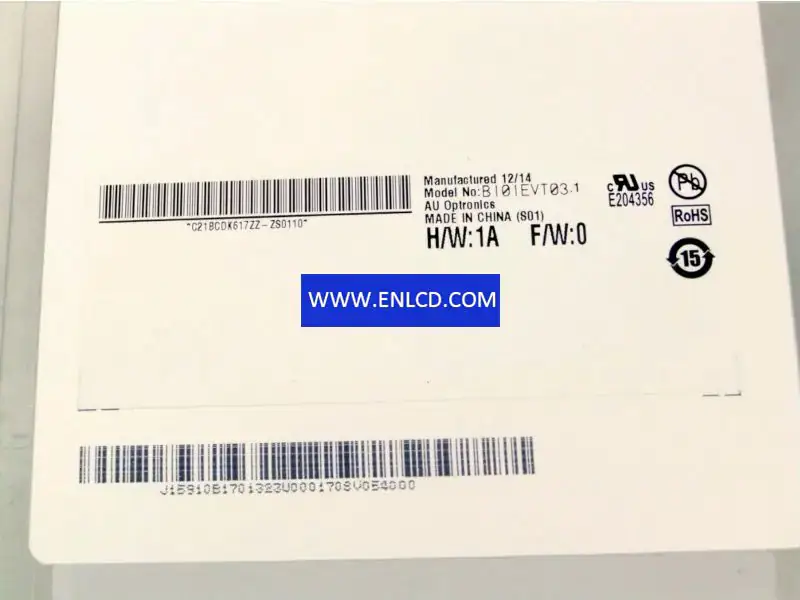

B101EVT03.1 AUO LCD panel replacement

Brand：AUO
Model：B101EVT03.1 (AUO30D4)
Diagonal Size：10.1 inch
Type：a-Si TFT-LCD, Assembly
Pixel Format：1280(RGB)×800[WXGA]
Configuration： RGB Vertical Stripe
Active Area：216.96(H)×135.6(V) mm
Outline Dim.：253.15(H)×167.75(V)×6.7(D) mm
Bezel Area：-
Treatment：Antiglare
Luminance：300 cd/m2 (Typ.)
Contrast Ratio： 1300:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR＞10)
Operating Mode：MVA, Normally Black, Transmissive
Support Color：262K 47%(CIE1931)
Light Source：WLED, 15K hours, With LED Driver
Weight： TBD
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Embeded (Projected Capacitive Touch)
Interface Type： 40 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
