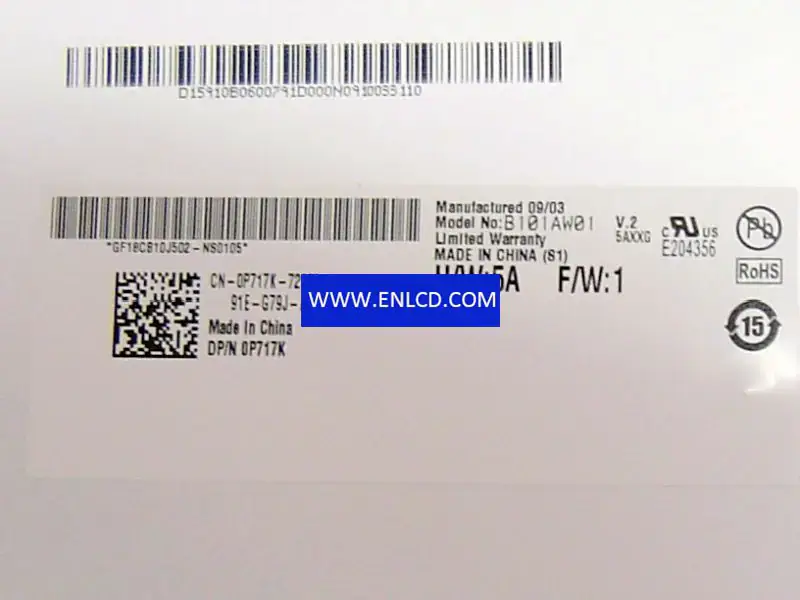

B101AW01 V2 HW5A AUO LCD panel replacement

Manufacturer：AUO
Screen Size： 10.1 inch
Pixel Number： 1024(RGB)×576(WSVGA)
Active Area(mm)：222.72 × 125.28 (H×V)
Bezel Area(mm)：224.72 × 127.28 (H×V)
Luminance：200 (Typ.)(cd/m2)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Good View at：6 o’clock
Color Depth：262K 45% (CIE1931)
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Refresh Rate：60Hz
Model Name：B101AW01 V2 HW5A (AUO12D1) 5 Compatible
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 235 × 143 × 5.2 (H×V×D)
Treatment：Antiglare, Hard coating (3H)
Contrast Ratio： 500 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：8 (Typ.)(Tr+Td) ms
Backlight： WLED , 10K hours , With LED Driver
Used for： Netbook PC,
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 40 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
