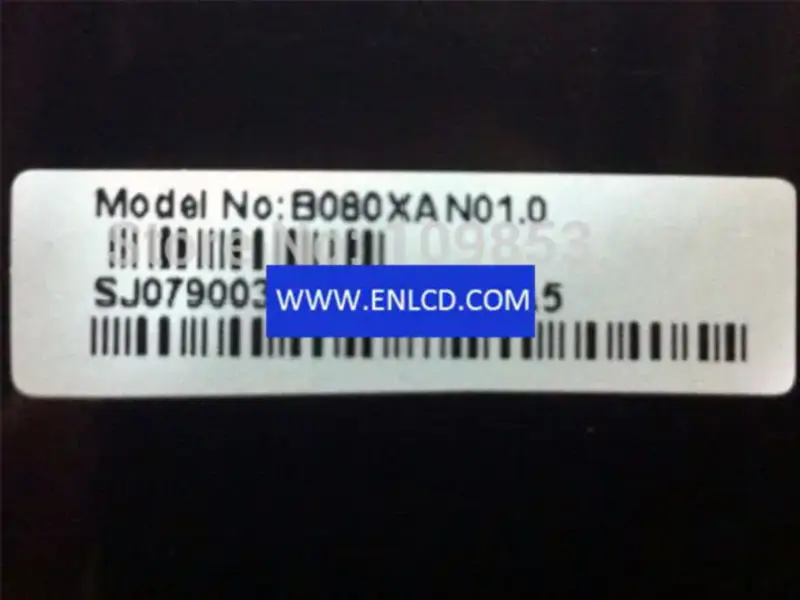

B080XAN01.0 AUO LCD panel replacement

Panel Brand：AUO
Panel Model：B080XAN01.01 Compatible
Panel Size：7.9 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：768(RGB)×1024 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：119.808(W)×159.744(H) mm
Bezel Opening：-
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Display Mode：AHVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Display Colors：262K 50%(CIE1931)
Lamp Type：6 stringsWLED, 10K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 65.0/70.0g (Typ./Max.)
Application： Pad & Tablet,
Signal Interface： MIPI (4 data lanes), 32 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
