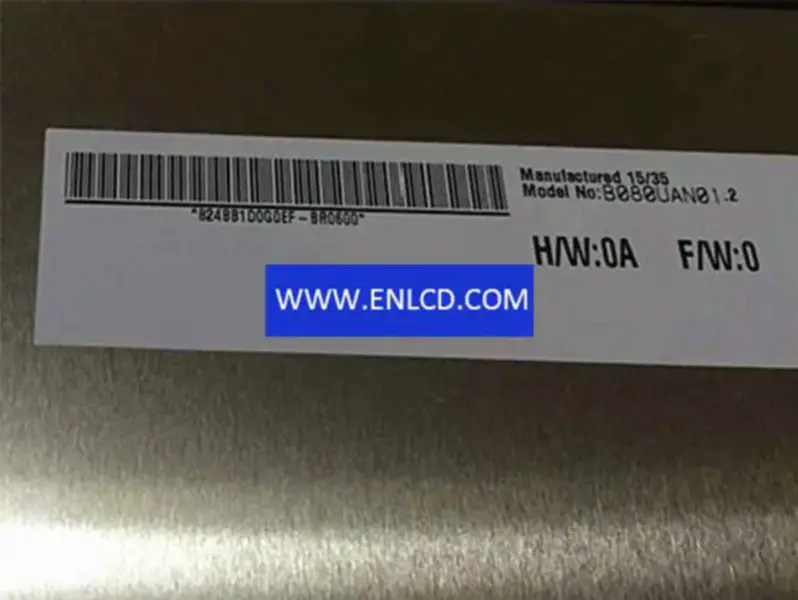

B080UAN01.2 AUO LCD panel replacement for Touchscreen

Manufacturer：AUO
Model Name：B080UAN01.2
Screen Size：8.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1200(RGB)×1920 (WUXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：107.64 × 172.224 (H×V)
Outline(mm)： 114.6 × 183.32× 3.8 (H×V×D)
Bezel Area(mm)：-
Treatment：Hard coating
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800 : 1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Response：25 (Typ.)(Tr+Td) ms
Good View at：Symmetry
Work Mode：AHVA, Normally Black, Transmissive
Color Depth：16.7M 60%(CIE1931)
Backlight：4 stringsWLED, 12K hours, No Driver
Mass： 90.0g (Max.)
Used for： Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： MIPI (4 data lanes), Connector , 39 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
