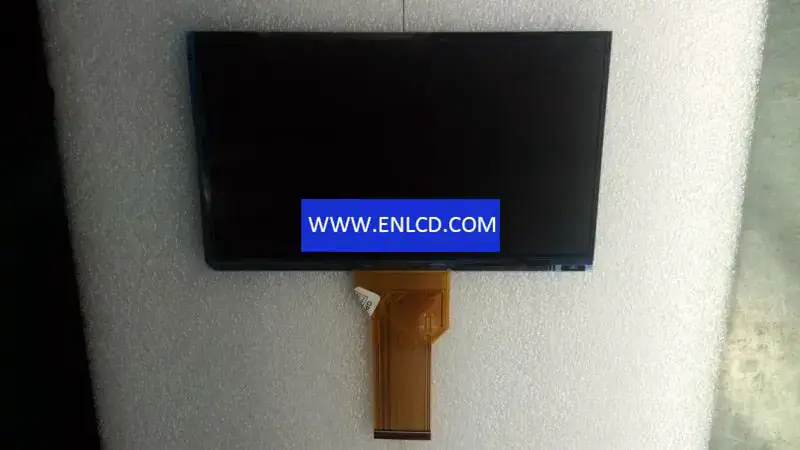

AT070TN90 Innolux LCD panel replacement

Panel Brand：Chimei Innolux
Panel Size：7.0 inch
Resolution：800(RGB)×480 , WVGA
Display Area：154.08(W)×85.92(H) mm
Outline Size：162.53(W)×96.62(H)×1.43(D) mm
Brightness：0 cd/m2
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Best View on：6 o’clock
Glass Depth： 0.50+0.50 mm
Display Colors：16.7M
Frequency： 60Hz
Weight：45.0g (Typ.)
Panel Model：AT070TN90
Panel Type：a-Si TFT-LCD , CELL
Pixel Format： RGB Vertical Stripe
Bezel Opening：-
Surface：Antiglare
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：10/15 (Typ.)(Tr/Td)
Transmissivity：5.11% (Typ.)(with Polarizer)
Lamp Type：No B/L
Touch Screen：Without
Application： Portable DVD Player, Digital Photo Frame,
Signal Interface： Parallel RGB (1 ch, 8-bit), 50 pins , FPC
Input Voltage： 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
