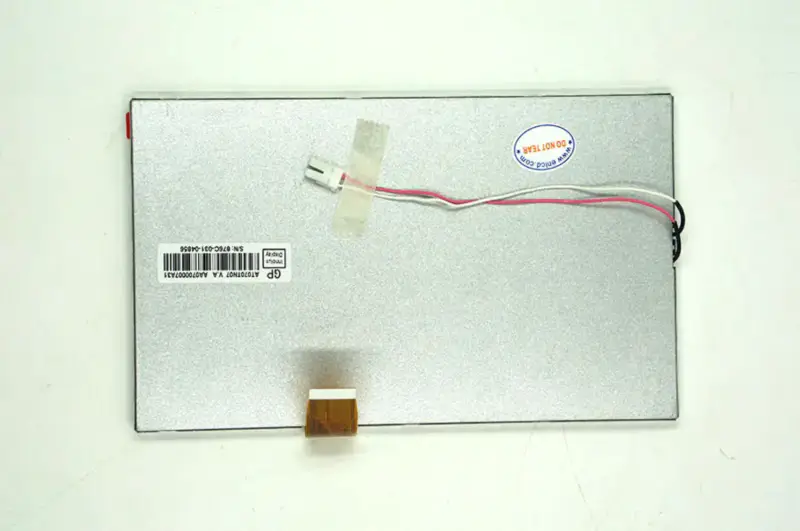

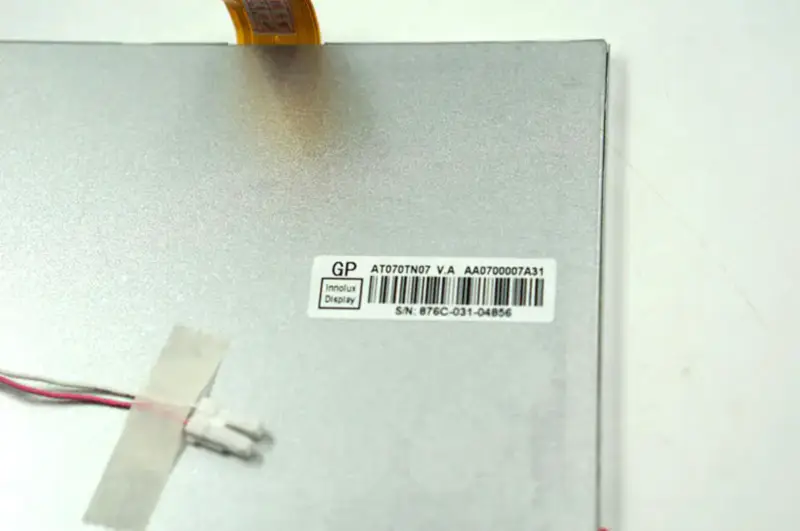

AT070TN07 V.A Innolux LCD panel replacement

Manufacturer：Innolux
Screen Size： 7.0 inch
Pixel Number： 480(RGB)×234
Active Area(mm)：154.08 × 86.58 (H×V)
Bezel Area(mm)：156.5 × 89.00 (H×V)
Luminance：200 (Typ.)(cd/m2)
Viewing Angle：60/60/40/60 (Typ.)(CR≥10)
Good View at：6 o’clock
Color Depth：Full color
Mass： 164g (Typ.)
Refresh Rate：-
Model Name：AT070TN07 V.A
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 164.9 × 100 × 6 (H×V×D)
Treatment：Antiglare
Contrast Ratio： 300 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：15/20 (Typ.)(Tr/Td) ms
Backlight：2S9P WLED , 20K hours , No Driver
Used for： Portable DVD Player, Video Door Phone, Digital Photo Frame,
Touchscreen：Without
Signal Type：TFT Specific Analog RGB, FPC, 26 pins
Voltage Supply： (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings： Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
