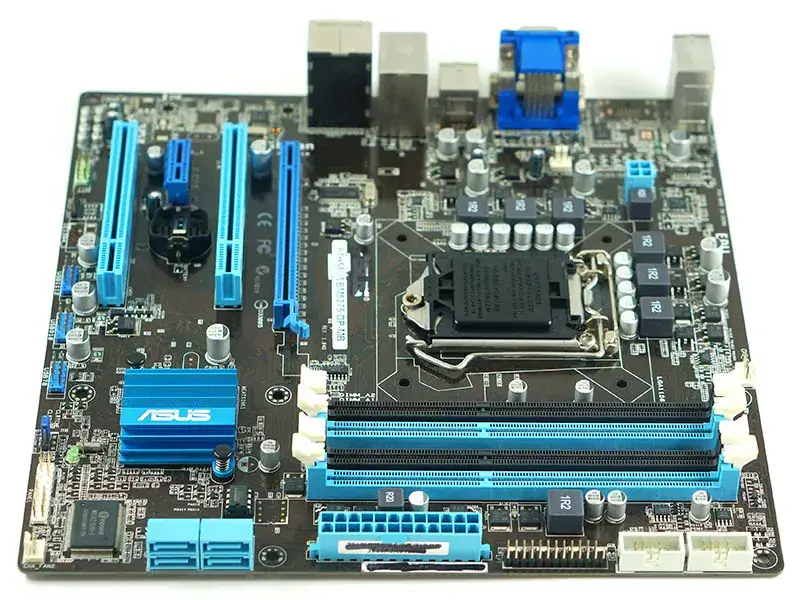

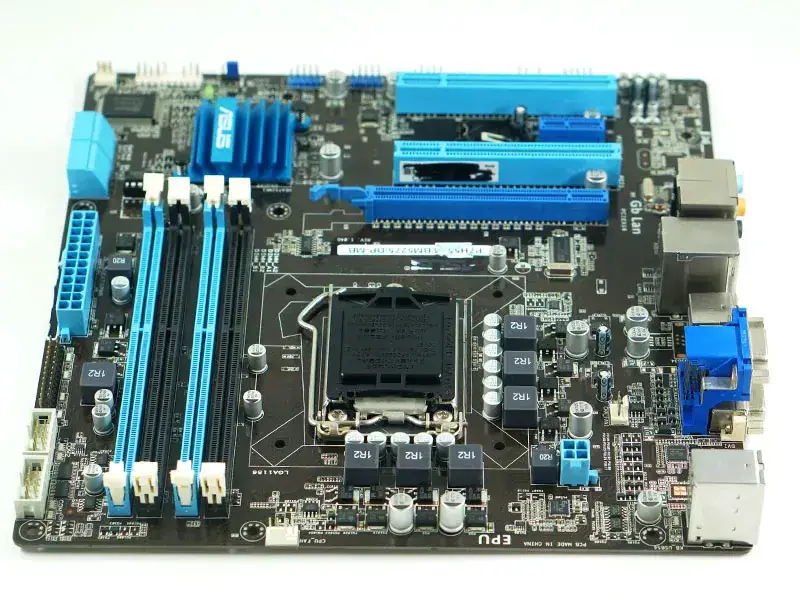

Name: Asus P7H55-M/BM5275/DP Motherboard
SKU: ENLCD0003400
Price: 66 USD
Availability: InStock

Asus P7H55-M/BM5275/DP Motherboard

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

Model
Manufacturer	ASUS
Manufacturer Part #	P7H55-M/CG5275/DP
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1156
Supported CPU(s)	Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel H55 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	16 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Expansion Slots Details	1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 (2.5GT/s, gray slots) 1 x PCI
Storage Controller	SATA 3.0 Gbps
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0
Connectors/Ports Details	Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port 1 x D-Sub 1 x HDMI 1 x S/PDIF Out (Optical) 1 x LAN(RJ45) port 6 x USB 2.0/1.1 3 x Jack (8-channel) Audio I/O Internal I/O Connectors 3 x USB connectors support additional 6 USB ports 1 x IDE connector 6 x SATA connectors 1 x CPU Fan connector (1×4-pin) 1 x Chassis Fan connector (1×3-pin) 1 x LPT connector 1 x S/PDIF Out Header Front panel audio connector 1 x COM connector 1 x Clear CMOS jumper 1 x 24-pin ATX Power connector 1 x 8-pin ATX 12V Power connector System Panel
