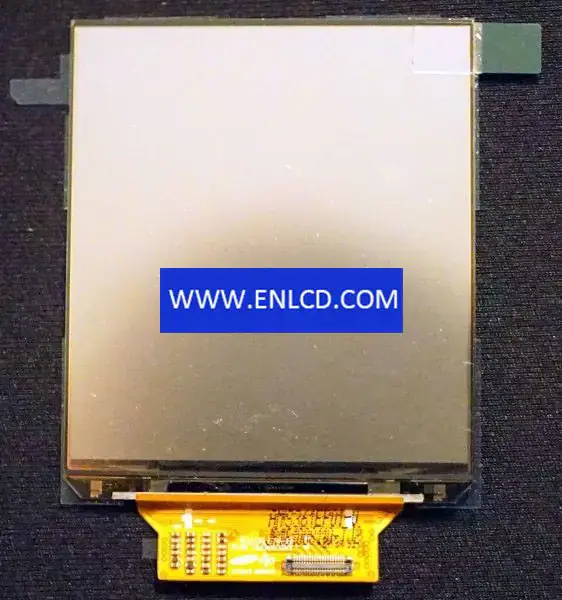

Samsung AMS361EP01 LCD

Specification

Model P/N:AMS361EP01
Brand:Samsung
Diagonal Size:3.6"
Resolution:1080(RG/BG)×1200 365PPI
Contrast Ratio:5000:1 (Typ.) (TM)
Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
Panel Type:AM-OLED, OLED
Pixel Format:RG/BG PenTile
Active Area:61.29(W)×68.1(H) mm
Bezel Opening:-
Outline Dim:63.75(H)×89.718(V) ×0.96(D) mm
Treatment:-
Luminance:250 cd/m² (Typ.)
View Direction:Symmetry
Response Time:-
Operating Mode:-
Support Color:16.7M 100% NTSC
Light Source:self
Weight:-
Designed For:HMD VR AR
Frame Rate:90Hz
Touch Panel:Without
Interface Type:MIPI (4 data lanes) , 40 pins Connector
Power Supply:1.8/3.3/3.8V (Typ.)(VDDI/VCI/VBAT)
