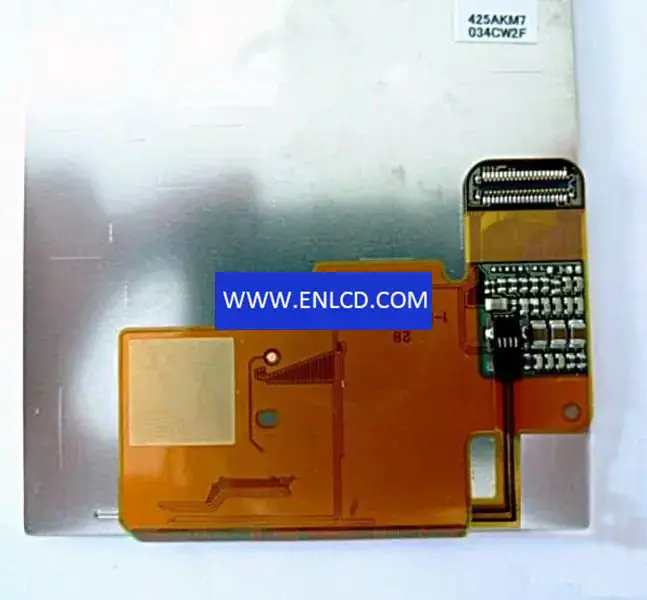

ACX425AKM SONY LCD panel replacement for Mobile Phone

Panel Brand：SONY
Panel Model：ACX425AKM
Panel Size：3.7 inch
Panel Type：LTPS TFT-LCD， LCM
Resolution：480(RGB)×800 ， WVGA
Pixel Format：RGB Vertical Stripe
Display Area：48.24(W)×80.4(H) mm
Bezel Opening：-
Outline Size：53.9(W)×90(H) mm
Surface：Hard coating (3H)
Brightness：320 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
Viewing Angle：80/80/80/80 (Min.)(CR≥10)
Display Mode：Normally Black， Transmissive
Best View on：Symmetry
Response Time：35 (Typ.)(Tr+Td)
Display Colors：16.7M 90%(CIE1931)
Lamp Type：7S1PWLED， Without Driver
Frequency：60Hz
Touch Screen：-
Panel Weight： 16.9g
Application Mobile Phone,Signal Interface： Parallel RGB (1 ch， 6-bit) + SPI， 40 pins， Connector
Input Voltage：2.6/2.6V (Typ.)(VDD/AVDD)
Environment：Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
