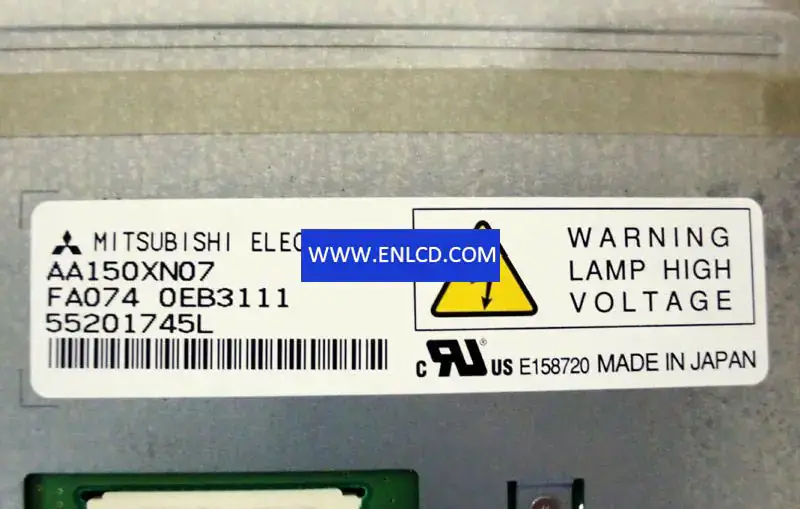

AA150XN07 Mitsubishi LCD panel replacement for Industrial Application

Brand：Mitsubishi
Model：AA150XN071 Compatible
Diagonal Size：15.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration： RGB Vertical Stripe
Active Area：304.128(H)×228.096(V) mm
Outline Dim.：326(H)×255(V)×17.1(D) mm
Bezel Area：308.1(H)×232.1(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio： 450:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：6/19 (Typ.)(Tr/Td)
Viewing Angle：75/75/50/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K/16.7M
Light Source：CCFL[4 pcs], 50K hours, W/O Driver
Weight： 1.38Kgs (Typ.)
Designed For： Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch, 6/8-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C：：
