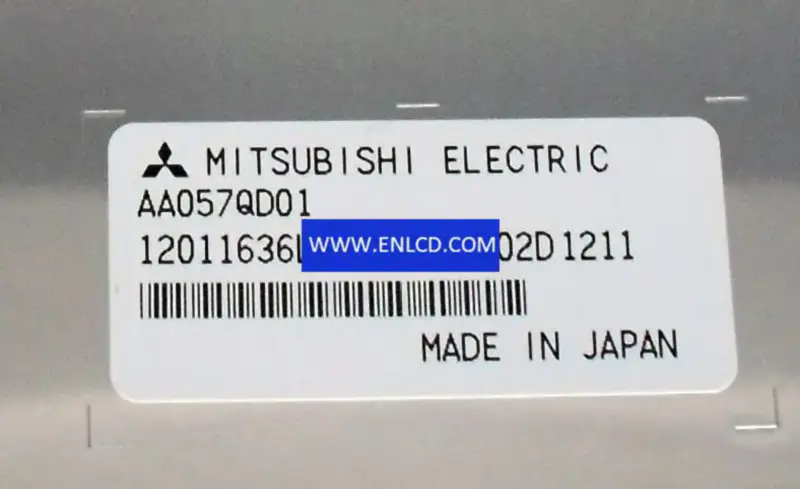

AA057QD01 Mitsubishi LCD panel replacement for Industrial Application

Panel Brand：Mitsubishi
Panel Model：AA057QD01
Panel Size：5.7 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：320(RGB)×240 , QVGA
Pixel Format：RGB Vertical Stripe
Display Area：115.2(W)×86.4(H) mm
Bezel Opening：119.2(W)×90.4(H) mm
Outline Size：144(W)×104.6(H)×9.3(D) mm
Surface：Clear, Hard coating (3H)
Brightness：450 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：12 o'clock
Response Time：8/22 (Typ.)(Tr/Td)
Display Colors：262K 50%(CIE1931)
Lamp Type：WLED, 100K hours, With LED Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 165g (Typ.)
Application： Industrial Application,
Signal Interface： CMOS (1 ch, 6-bit), 33 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C：：
