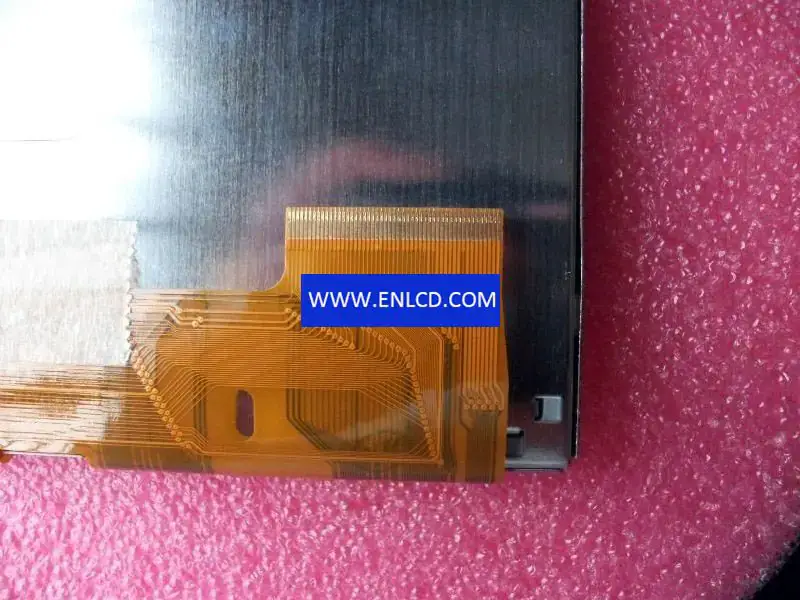

A070VW01 V1 AUO LCD panel replacement for Automotive Display

Brand：AUO
Model：A070VW01 V1
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD ， LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：152.4(H)×91.44(V) mm
Outline Dim.：165(H)×104(V)×6.3(D) mm
Bezel Area：154.0(H)×93.64(V) mm
Treatment：Antiglare (Haze 5.5%)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：12/18 (Typ.)(Tr/Td)
Viewing Angle：60/60/40/60 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K
Light Source：CCFL[1 pcs]， 10K hours， W/O Driver
Weight： 190±10g
Designed For： Automotive Display,
Frame Rate：-
Touch Panel：Without
Interface Type： 50 pinsTTL (1 ch， 6-bit)， FPC
Power Supply：3.3/8.8/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
