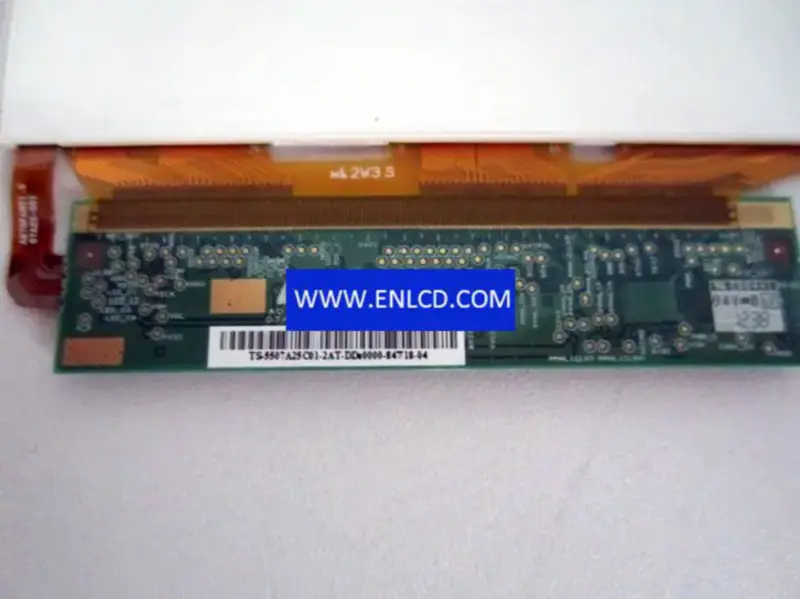

A070PAN01.0 AUO LCD panel replacement

Manufacturer：AUO
Model Name：A070PAN01.0
Screen Size：7.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：900(RGB)×1440 (WXGA+)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 94.23 × 150.77 (H×V)
Outline(mm)：104.53 × 163.64× 2.3 (H×V×D)
Bezel Area(mm)： –
Treatment： Hard coating
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：900 : 1 (Typ.) (TM)
Viewing Angle： 85/85/85/85 (Typ.)(CR≥10)
Response： 18/12 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： AHVA, Normally Black, Transmissive
Color Depth：16.7M 50%(CIE1931)
Backlight：5S4PWLED, No Driver
Mass： 55.0g
Used for： Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：MIPI (4 data lanes), Connector, 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C
