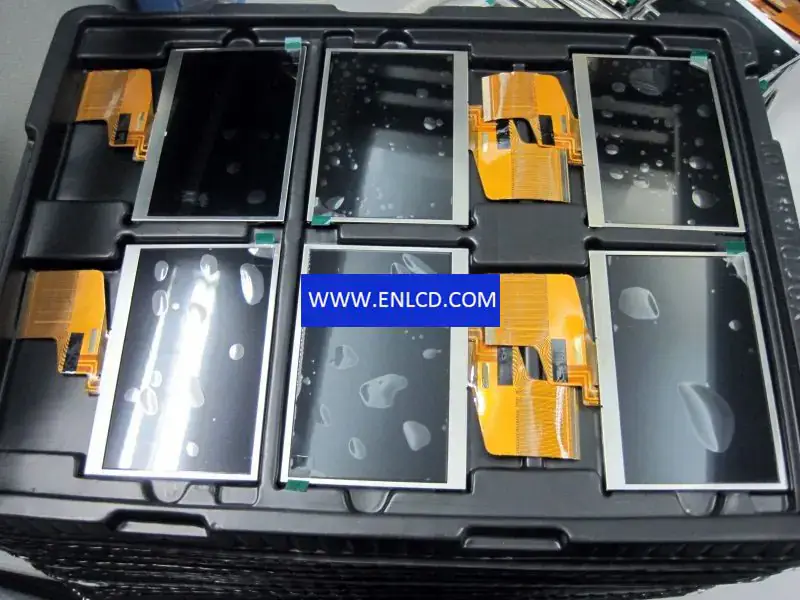

990000475 TPO LCD panel replacement

Panel Brand：TPO
Panel Size：4.3 inch
Resolution：800(RGB)×480 , WVGA
Display Area：93.6(W)×56.16(H) mm
Outline Size：100.6(W)×68.45(H) mm
Brightness：300 cd/m2 (Typ.)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：16.7M
Frequency：-
Weight：TBD
Panel Model：990000475
Panel Type：LTPS TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：-
Surface：-
Contrast Ratio：400:1 (Typ.) (TM)
Display Mode： Normally Black, Transmissive
Response Time：30/10 (Typ.)(Tr/Td)
Lamp Type： 8S1P WLED, Without Driver
Touch Screen：Embeded (4-wire Resistive)
Application： Portable Navigation, Pocket TV, MP4 PMP,
Signal Interface： Parallel RGB (1 ch, 8-bit) + SPI, 60 pins , FPC
Input Voltage： 3.3/5/-5V (Typ.)(VCC/AVDP/AVDN)
Environment： Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -30 ~ 80 °C
