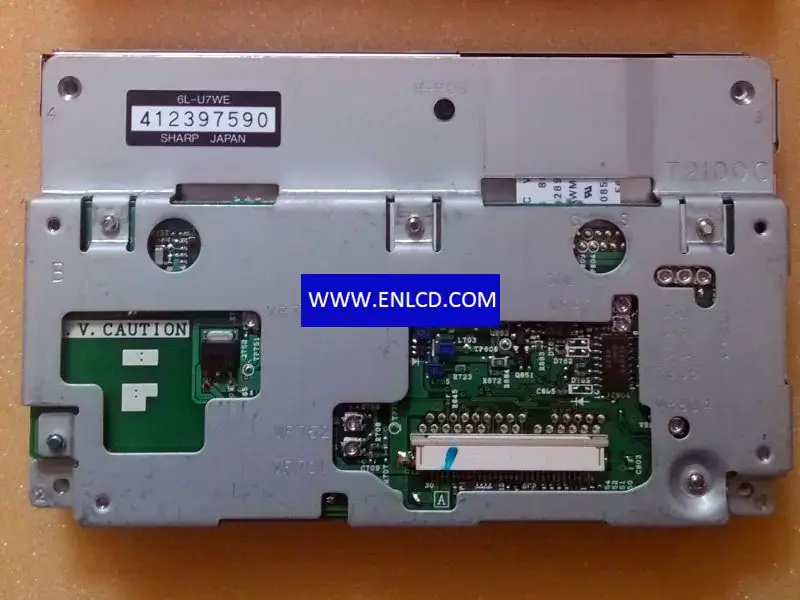

Sharp 6L-U7WE LCD

Specification

Model P/N:6L-U7WE
Brand:Sharp
Diagonal Size:5.8"
Resolution:400(RGB)×234 80PPI
Contrast Ratio:60:1 (Min.) (TM)
Viewing Angle:60/60/60/35 (Min.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:127.2(W)×71.8(H) mm
Bezel Opening:-
Outline Dim:145(H)×89(V) ×21.65(D) mm
Treatment:-
Luminance:320 cd/m² (Typ.)
View Direction:-
Response Time:60 (Max.)
Operating Mode:TN, Normally White, Transmissive
Light Source:CCFL , With Inverter
Weight:325g (Typ.)
Frame Rate:-
Touch Panel:Without
Interface Type:Analog RGB + Composite Video (NTSC) , 30 pins Connector
