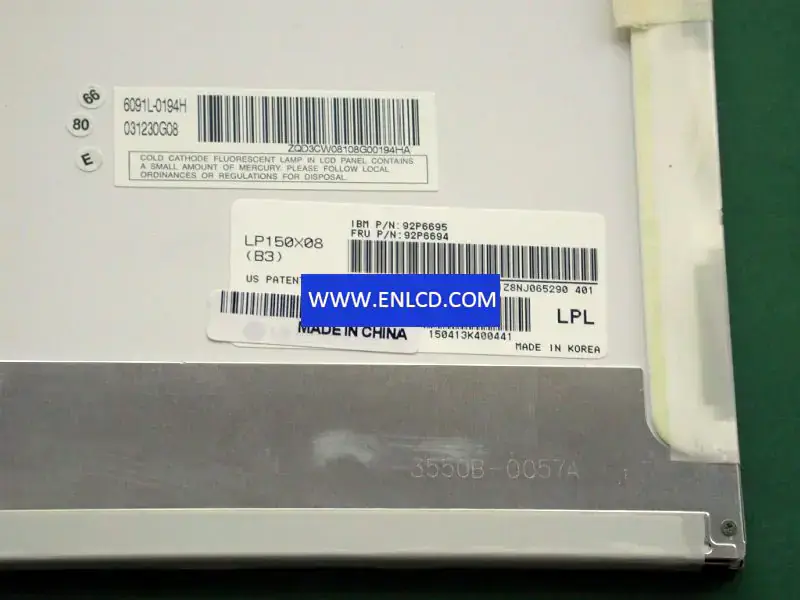

LP150X08-B3 LG Display LCD panel replacement

LP150X08-B3 LG Display LCD panel replacement

Name: LP150X08-B3 LG Display LCD panel replacement
Brand: LG.Philips LCD
SKU: ENLCD0024480
Price: 23 USD
Availability: InStock

voorraad:

merk: LG.Philips LCD

SKU:{{ product.sku }}

Model: {{ product.model }}

gewicht: {{ product.weight }} kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

hoeveelheid:

Productdetails

Manufacturer：LG.Philips LCD
Model Name：LP150X08-B3
Screen Size：15.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1024(RGB)×768 (XGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 304.128 × 228.096 (H×V)
Outline(mm)： –
Viewing Angle： –
Response： –
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：1 pcsCCFL
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：-
Signal Type： LVDS (1 ch, 6-bit)
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
