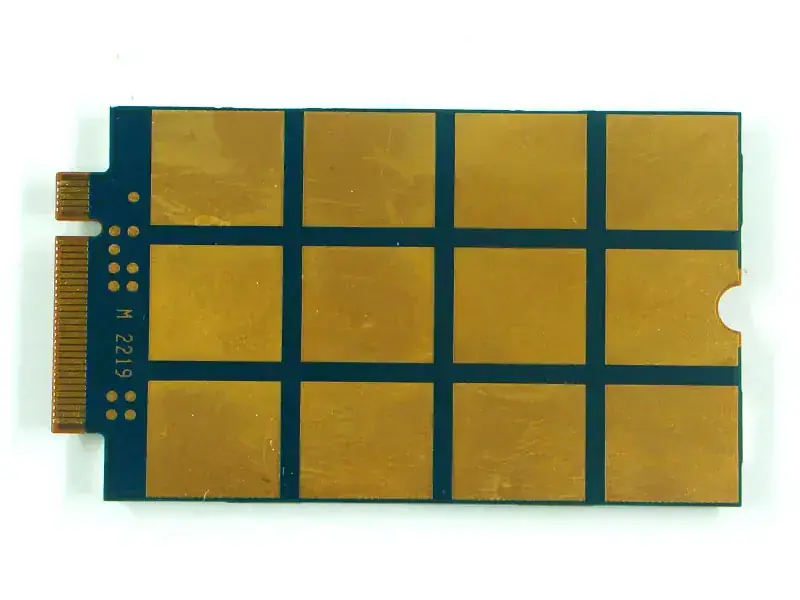

Module Quectel RM502Q

Caractéristiques

• • * 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz* Frequency Bands – 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 – 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 – DL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79 – UL: 2 × 2 MIMO on n41 – LTE Category：DL Cat 20/ UL Cat 18 – LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 – LTE-TDD: B34/B38/39/B40/B41/B42/B43/B48 – LAA: B46 (only support 2 × 2 MIMO) – LTE DL 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 – WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 – GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo”* Certifications/Regulatory – GCF (Global) – CE (Europe) – PTCRB (North America) – FCC (America) – IC (Canada) – JATE*/TELEC* (Japan) – RCM (Australia/New Zealand)

    * Carrier – Verizon*/AT&T*/T-Mobile* (America) – Telstra* (Australia)

    * Others: RoHS/WHQL

    * Data Transmission (Max.) ② – 5G SA Sub-6 Data Rate: DL 4.2 Gbps; UL 450 Mbps – 5G NSA Sub-6 Data Rate: DL 5.0 Gbps; UL 650 Mbps – LTE Data Rate: DL 2.0 Gbps; UL 200 Mbps” – WCDMA Data Rate: DL 42 Mbps; UL 5.76 Mbps

    * Interfaces – (U)SIM x 1 – USB 2.0 x 1 – USB 3.0/3.1 x 1 – PCIe 3.0 x 1 – PCM x 1 – Antenna x 4

    * Voice – VoLTE: Digital Audio and VoLTE (Voice over LTE) (optional)

    * Enhanced Features – e-SIM: External eSIM – DTMF* – DFOTA* – (U)SIM Card Detection

    * Drivers – USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x/5.x/6.x/7.x/8.x/9.x/10 – GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10 – RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10 – NDIS Driver: Windows 7/8/8.1/10 – MBIM Driver: Windows 10、Linux 3.18–5.4 – GobiNet Driver: Linux 2.6–5.4 – QMI_WWAN Driver: Linux 3.4–5.4″

    * Electrical Features – Supply Voltage Range: 3.135–4.4 V, typical 3.7 V – Power Consumption: # 80 μA @ Power down # 4.2 mA @ Sleep # 39 mA @ USB 2.0, Idle # 54.5 mA @ USB 3.0, Idle

    * Temperature Range – Operation Temperature: -30 °C to +70 °C – Extended Temperature: -40 °C to +85 °C”

    * Dimensions: 30.0 × 52.0 × 2.3mm
