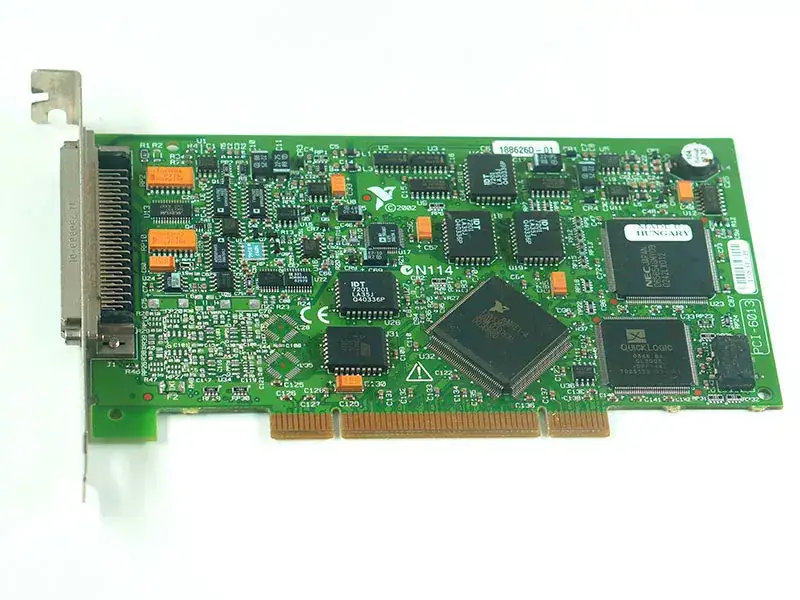

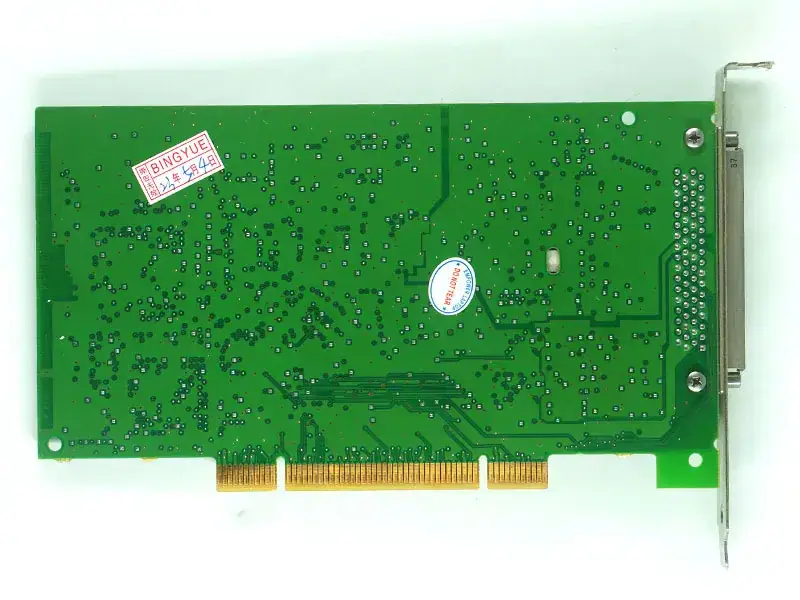

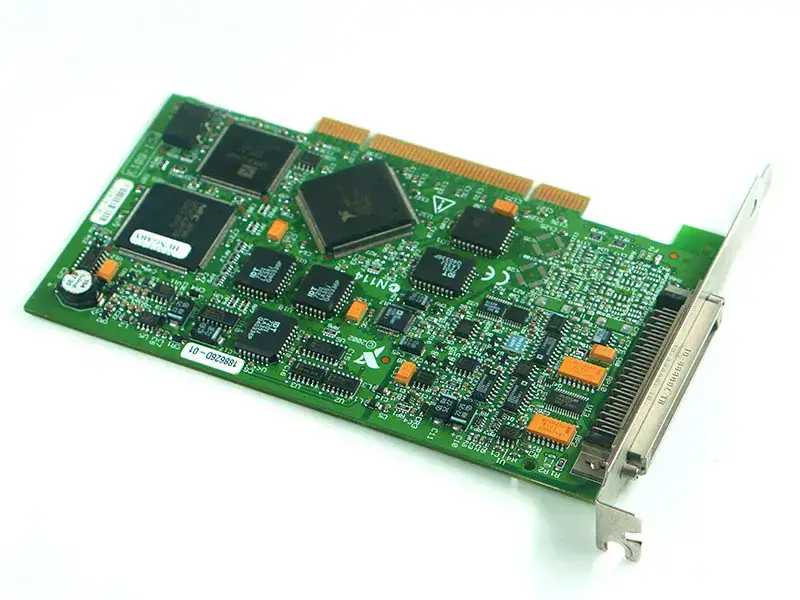

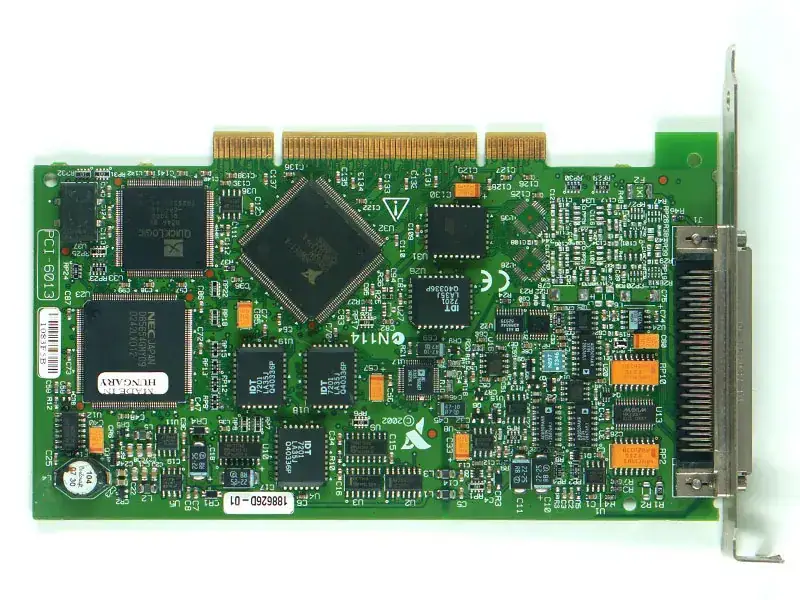

NI PCI-6013 Carte DAQ

The National Instruments PCI-6013 (Part Number: 778629-01) is a Low-Cost, 16-Bit, 200 KS/s Multifunction DAQ. This model offers eight digital Input/output lines and two 24-bit counters. The NI PCI-6013 is designed to sustain counter/timer and digital operations together in parallel with AI operations and is useful for applications where analog outputs are required.

Le PCI 6013 National Instruments comes equipped with an SCSI-II type, 68-pin male I/O connector. The two counters incorporated in this module offer buffered operations, 100 ppm time base stability, pulse generation, and TTL logic levels with a maximum range of 0 V, 5 V. This model provides 16 single-ended or 8 differential analog input channels with 200 kS/s maximum achievable sample rate, 10 V maximum voltage, – 10 V to 10 V maximum voltage range, – 20 mV to 50 mV minimum voltage range, and a 16-bit resolution. Also, the device has a DC input coupling.
