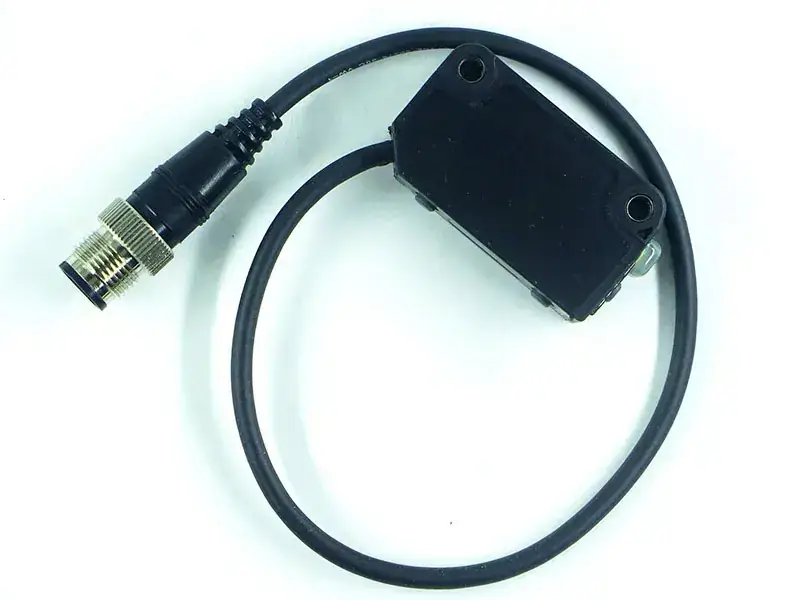

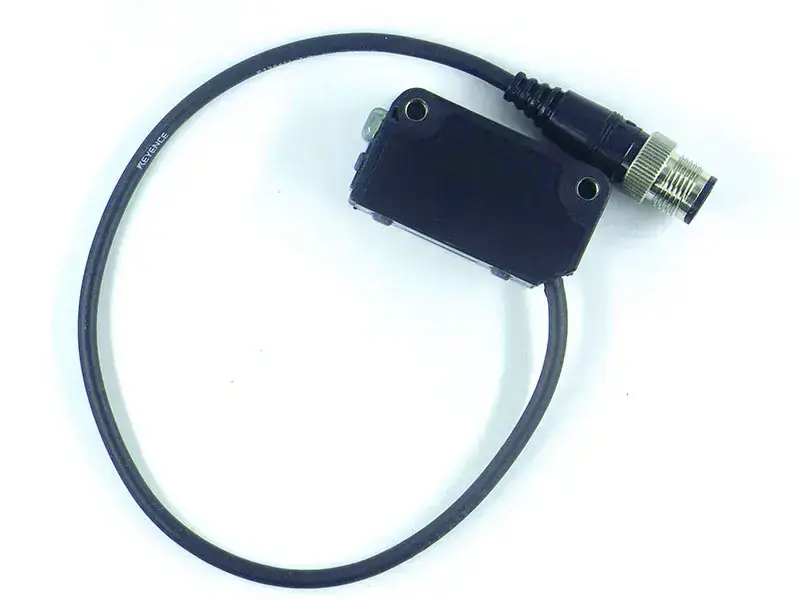

Capteur KEYENCE PZ-V73P

Name: Capteur KEYENCE PZ-V73P
SKU: ENLCD0010150
Price: 199 USD
Availability: InStock

Inventaire:

SKU:{{ product.sku }}

maquette: {{ product.model }}

poids: {{ product.weight }} kg

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

quantité:

détails du produit

PZ-V73P Specification

Modèle		PZ-V73P
Type		Intelligent reflective (M12 cable connector type)
Output radiation		PNP
Measuring distance		20 to 900 mm (300 x 300 mm white paper) ^*1
Setting distance		150 to 900 mm (100 x 100 mm white paper)
light source		Infrared LED
Sensitivity adjustment		Automatic calibration
Temps de réponse		1 ms max.
Operating mode		LIGHT-ON/DARK-ON (selectable via pink wire)
Signal lamp		Output: Orange LED, stable operation: Green LED
Control output		PNP open collector, max. 100 mA (max. 26.4 V), residual voltage: max. 1 V
Digital display		7 segments, 3-digit red LED
Protection circuit		Reverse polarity protection, overcurrent protection, voltage filter
Nominal values	Tension d'alimentation	12 to 24 VDC ±10%, ripple (SS) 10% or less
	Consommation électrique	45mA or less
Environmental resistance	Classe de protection	IP67
	Ambient light	Incandescent lamp: max. 5,000 lux, sunlight: max. 20,000 lux
	Ambient temperature	-20 to +55 °C (no freezing)
	Humidité relative	35 to 85% RH (No Condensation)
	Résistance aux vibrations	10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in the X, Y and Z directions
	Résistance aux chocs	1,000 m/s ² , 6 times each in the X, Y and Z directions
Case material		fiberglass reinforced plastic
Poids		Approximately 40g
